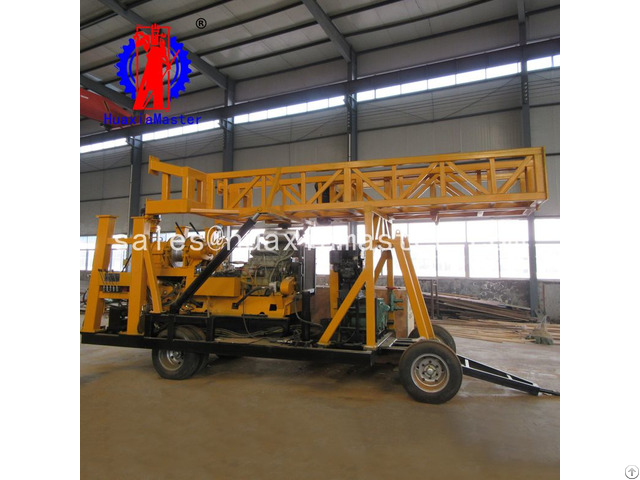

Deep Borehole In Complex Rock Formation Xyx 44a Wheeled Hydraulic Core Drilling Rig - China

Suitable for high-speed medium and deep borehole drill in complex rock formation, XYX-44A wheeled hydraulic core drilling rig 1 - Characteristics of XYX-44A wheeled hydraulic core drilling rig

XY-44A wheeled hydrulic core drilling rig is a multi-purpose spindle diamond core drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation.

HuaxiaMaster core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.

2 - Applications of XYX-44A wheeled hydraulic core drilling rig

·Core drilling rig ·Engineering geology exploration, ·Hydrology and core drilling

·Large diameter foundation piles construction

3 - Parameters of XYX-44A wheeled hydraulic core drilling rig

XYX-44A wheeled hydraulic core drilling rig

Drilling depth 600-1400m

Max open hole caliber 300mm

End hole caliber 75mm

Drilling rod diameter 60mm

Drilling angle 90-65

Drill rig moving stroke 450mm

Spindle Spindle speed ( Diesel Engine) Forward 60 97 169 187 276 301

284 487 521 847 1180 1490r/min Reverse 65 201r/min Spindle speed ( Electric Motor) Forward 50 81 141 155 230 251

320 406 434 706 984 1247r/min Reverse 54 167r/min

Spindle stroke 600mm

Spindle max.

pressure force 90kn

Spindle inner diameter 96mm

Lifting capacity 120kn

Main hoist

Max.

single line lifting capacity 45kn

Max.

single line lifting speed 0-45m/s

Wire rope caliber 17.5-18.5mm

Hoist capacity of wire line 90-110m

Roller diameter 140mm

Wirerope diameter 6mm

Wire rope length 450m

Mud pump

Type BW-250

Displacement 250 l/min

Work pressure 80kg/cm²

Water inlet pipe diameter 75 mm

Water outlet pipe diameter 50 mm

Power

Diesel engine YC4E135-1 81KW

Electric motor Y225S-4 37KW
