Fy180 Crawler Pneumatic Water Well Drilling Rig - China

price: 11200.00 Dollar US$

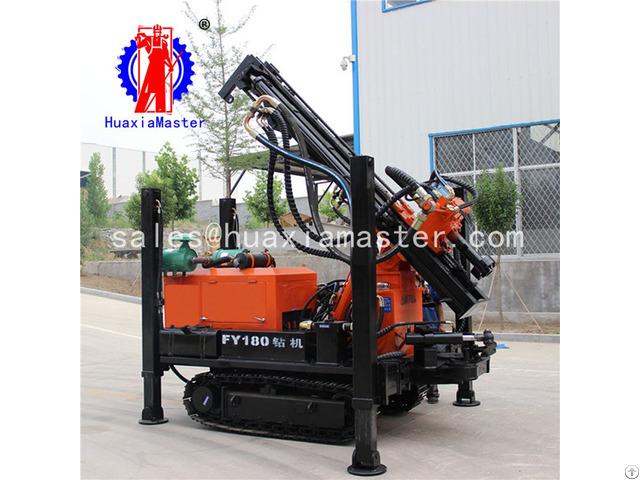

Fy180 Crawler Pneumatic Water Well Drilling Rig

Products Photos Catalog Fy180 Crawler Photos Catalog

1 - The applications of FY180 crawler pneumatic water well drilling rig

·civil engineering drilling

·geothermal drilling

·drilling with large diameter and deep drilling footage

·It's fast, flexible and efficient

2 - The specifications of FY180 crawler pneumatic water well drilling rig

model FY180

Gross weight T 3.8

Dimension mm 3800*1550*2350

Aperture mm 130-254

Drilling depth m 180

Feed stroke mm 3000

Travel speed km/h 2.5

Grade ability Max.

30°

Rising height from ground mm 250

Wind pressure Mpa 1.7-2.5

Air consumption m³/min 15-27

Engine power kw 42-65

Rotary speed rpm 48-70

Rotation torque N.

m 4200-5600


Company Contact:


  • Phone: 18865479508

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, JINING , China , China

  • Email: Email


Published date: January 29, 2019

  • Business Description: Master Group Co., Ltd. is dedicated to providing the drilling rig and pile driver for engineering and mining construction.

    As a active response to the Belt and Road Initiative, We have took numerous efforts to go abroad.

    Our products have been sold to Europe, CentralAsia, Southeast Asia, Africa and dozens of countries and regions.

    We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements.

    We are a leading company in the drill rig industry in China.

    We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes.

    And we have participated in a number of national key projects and earned our reputation.

    Our Companys “HuaxiaMaster” has become a well-known brand in China.

    Our Products:

    - 4kw Collapsible Electric Water Well Drilling Rig

    - China Portable Automatic Water Well Drilling Rig

    - China Hz 130y Hydraulic Water Well Drilling Rig

    - China Hz 130yy Water Well Drilling Machine

    - Xyx 130 Water Well Hydraulic Press Drilling Machine
