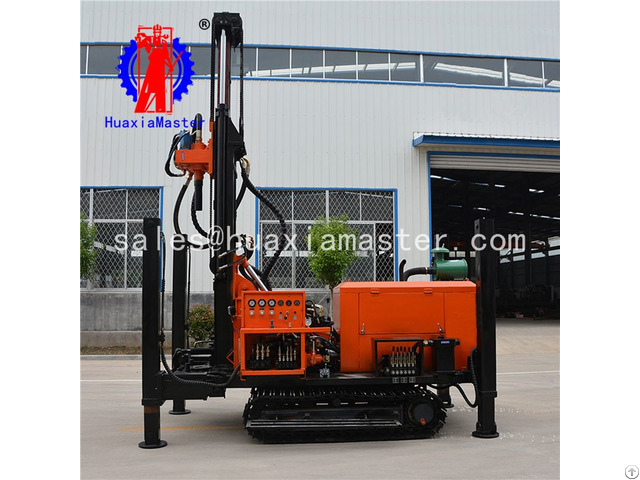

Fy200 Crawler Pneumatic Water Well Drilling Rig - China

price: 13600.00 Dollar US$

1 - The applications of FY200 crawler pneumatic water well drilling rig

·civil engineering drilling

·geothermal drilling

·drilling with large diameter

·deep drilling footage ·fast, flexible and efficient.

2 - The specifications of FY200 crawler pneumatic water well drilling rig Model FY200

Gross weight t 4.6

Dimension mm 3800*1600*2450

Aperture mm 140-325

Drilling depth m 200

Feed stroke mm 3000

Travel speed km/h 2.5

Grade ability max.

30°

Rising height from ground mm 250

Wind pressure mpa 1.7-3.0

Air consumption m³/min 17-35

Engine power kw 65

Rotary speed rpm 50-70

Rotation torque n.

m 5000-6500


Company Contact:


  • Phone: 18865479508

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, JINING , China , China

  • Email: Email


Published date: January 29, 2019

  • Business Description: Master Group Co., Ltd. is dedicated to providing the drilling rig and pile driver for engineering and mining construction.

    As a active response to the Belt and Road Initiative, We have took numerous efforts to go abroad.

    Our products have been sold to Europe, CentralAsia, Southeast Asia, Africa and dozens of countries and regions.

    We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements.

    We are a leading company in the drill rig industry in China.

    We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes.

    And we have participated in a number of national key projects and earned our reputation.

    Our Companys “HuaxiaMaster” has become a well-known brand in China.
