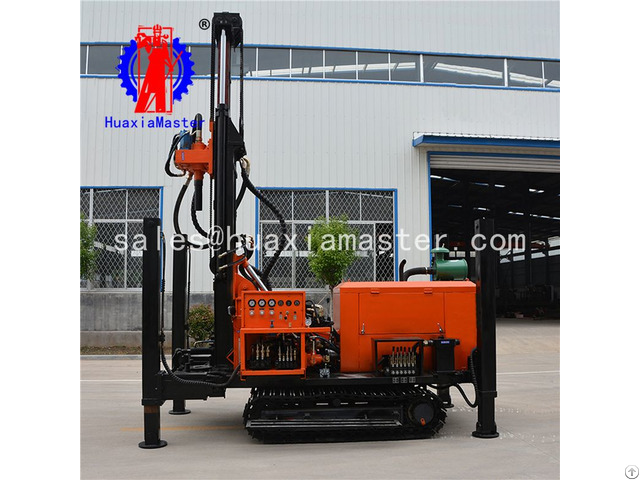

Fy200 Crawler Pneumatic Water Well Drilling Rig Manufacturer For China - China

1 - The applications of FY200 crawler pneumatic water well drilling rig

·civil engineering drilling

·geothermal drilling

·drilling with large diameter

·deep drilling footage ·fast, flexible and efficient.

2 - The specifications of FY200 crawler pneumatic water well drilling rig Model FY200

Gross weight t 4.6

Dimension mm 3800*1600*2450

Aperture mm 140-325

Drilling depth m 200

Feed stroke mm 3000

Travel speed km/h 2.5

Grade ability max.

30°

Rising height from ground mm 250

Wind pressure mpa 1.7-3.0

Air consumption m³/min 17-35

Engine power kw 65

Rotary speed rpm 50-70

Rotation torque n.

m 5000-6500 Shandong Master Machinery Group Co., Ltd.

Sales Manager: Candice Cheng

Tel: 0086-537-2335787

Mob: 0086-18865479502

Wechat: 008618865479502

Whatsapp: 0086188654795 02

QQ: 1447852867
