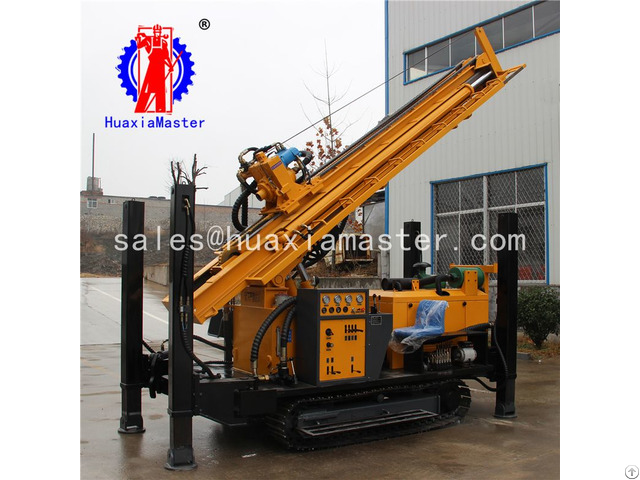

Fy300 Crawler Type Pneumatic Drilling Rig Price - China

1 - The applications of FY300 crawler type gasoline engine drilling rig

civil engineering drilling, geothermal drilling, drilling with large diameter and deep drilling footage

It’s fast, flexible and efficient.

2 - The specifications of FY300 crawler type gasoline engine drilling rig

Model FY300

Aperture mm 140-325

Drilling depth m 300

Feed stroke mm 6000

Travel speed km/h 2

Grade ability max.

30°

Rising height from ground mm 230

Wind pressure mpa 1.7-3.3

Air consumption m³/min 23

Engine power kw 85

Rotary speed rpm 55-115

Rotation torque n.

m 7200-8500

Gross weight t 8.8

Dimension mm 4350*1850*2750

Company Contact:

• Posted By: Shandong Master Machinery Group Co.,Ltd.

• Phone: 18865479502

• Address: No.47,Jinyu Road,Jining City,Shandong Province,China, jining , China , China

• Email:

• Website: http://www.sdjujiang.com

• Business Description: Shandong Master Machinery Group Co., Ltd. is located in Jining city, Shandong Province , which is known as "The hometown of Confucius, formal state" reputation .

  Company east to “ Oriental holy city”of qufu, west to “hero”of liangshan, “qilu graceful” weishan lake in the south, "wuyue exclusive" Tarzan in the north, The martial arts are prosperous, and the people are geeky.

  convenient transportation like Jining airport, beijing-shanghai high-speed railway, lunan high-speed railway, beijing-taiwan expressway, zhanlan high-speed crisscross, , communication developed.

  Shandong Master Machinery Group Co., Ltd. as parent company and head office hold the spirit of "delivering the spirit of craftsman and the quality of the great craftsman" for a long time , Pragmatic development will strengthen our progress.

  Nowadays, it has developed into a collectivized enterprise integrating r&d design, production processing and marketing.

  The group company mainly provides solutions for engineering and mine construction.

  With high quality products, good service and honest reputation, our company has established a solid material supply relationship with several universities, research institutes, design institutes and reconnaissance institutes.

  And stand out from a large number of national key project construction projects , The market performance is among the best in the industry.

  The group company actively responds to the national "One Belt And One Road" policy to go abroad.

  Drilling rig products are now sold to many countries in Europe, central Asia, southeast Asia and Africa.

  Our company's independent brand "HuaxiaMaster" has become a well-known brand for customers.

  It is a pleasure to have friends coming from afar.

  We warmly welcome friends from all walks of life to visit our company and work together to create a better tomorrow.
