Highly Recommend Bxz 2l Mini Portable Vertical Backpack Core Drilling Rig - China

1 - Brief introduction of BXZ-2L vertical backpack core drilling rig

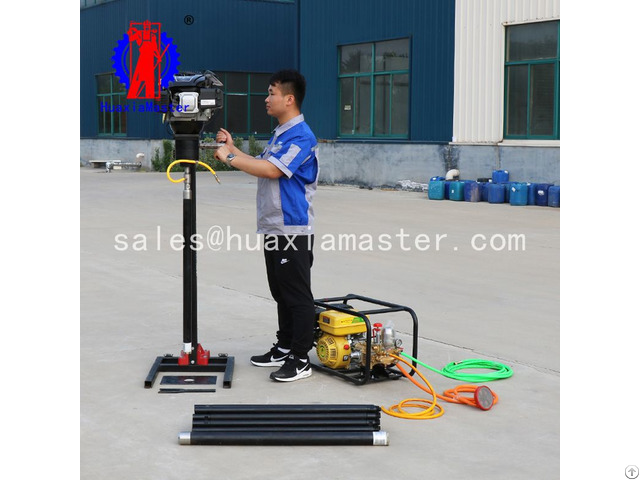

BXZ-2L vertical backpack core drilling rig is a removable core sample drilling rig.

The rig is mainly used in mineral exploration, geochemical exploration, shallow sampling, oil field exploration, geoscience research, geotechnical engineering, engineering investigation, water conservancy engineering survey, highway engineering survey and so on.

The main features of BXZ-2L vertical backpack core drilling rig are compact structure, detachable, small volume, light weight, easy to carry; imported kohler brand gasoline engine with large horsepower and guaranteed drilling depth with drilling frame.

Field operation is more convenient and safe.

2 - Specifications of BXZ-2L vertical backpack core drilling rig

BXZ-2L vertical backpack core drilling rig

Engine brand Kohler

House power 7.75 HP

Fuel tank capacity 1400 ML

Transmission mode gear-driven

Starting mode recoil pull starter

Clutch mode automatic clutch

Coring mode rotary

Rate of penetration 540r /min

Gear ratio 7: 1

Transmission mode CVT (continuously variable transmission) Drill pipe diameter 32mm

Drill pipe total length 30m

Drill hole diameter 32-120mm

Size 550*450*420mm

Net weight 52 kg

Packing measurement 1050*600*550mm

3 - Configuration list of BXZ-2L vertical backpack core drilling rig

Item Parameter Unit Number

Vertical backpack core drilling rig BXZ-2L set 1

Drilling pipe including joint(mm) 32 *800 pc 38

Reducing nipple(mm) 46 pc 1

Coring barrel(mm) 46 *700 pc 1

Alloy bit(mm) 46 pc 1

Diamond bit(mm) 46 pc 1

Reducing nipple(mm) 60 pc 1

Coring barrel(mm) 60*700 pc 1

Diamond bit(mm) 60 pc 1

Alloy bit(mm) 60 pc 1

Mud pump (gasoline engine) set 1

Inlet hose pipe(mm) 20*1000 pc 1

Inflow water filter pc 1

Outlet hose pipe(mm) 13*1000 pc 1

Water supply pipe(mm) 13*4500 pc 1

Safety clamp grasp 1

Pipe wrench grasp 2

Safety plate pc 1

Spark plug pc 1

Water seal set 1

Ring gasket set 1
