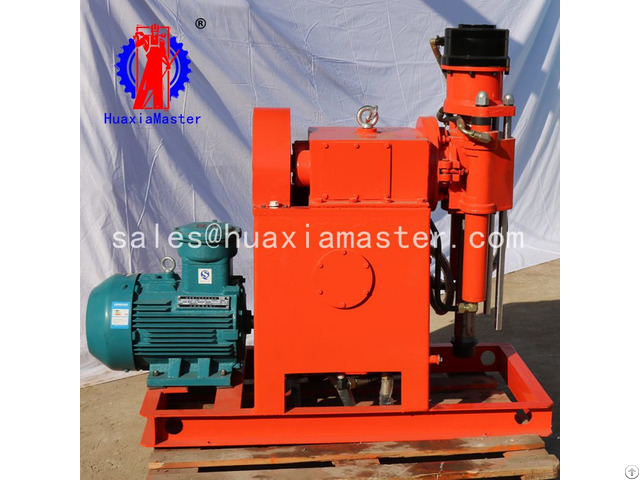

Huaxia Master Sale Zlj 1200 Grouting Reinforcement With Engineering Drilling Rig - China

1 - Brief introductions of ZLJ1200 grouting reinforcement drilling rig

ZLJ1200 grouting reinforcement drilling rig is mainly used for drilling holes with different angles in underground mine, tunnel, slope support and subway.

This drilling rig adopts mechanical drive, hydraulic feed with small size, light weight, The drilling rig is reliable and convenient to operate.

2 - Specifications of ZLJ1200 grouting reinforcement drilling rig

Borehole diameter 76-Φ108mm

Vertical shaft rated output torque 1200n.

m

Drilling pipe diameter 42mm/50mm

Drilling depth 200-250m

Non-coring bit 76Φ108mm

Core bit 76Φ108mm

Vertical rated rotating speed 385/219/123r/min

Vertical route 400mm

Rated pull out force 50kn(10mpa/hour)

Rated impetus 30kn(10mpa/hour)

Main shaft angle 0-360

Spring chuck maximum clamping force 50kn

Oil pump model YBC-20/80

Oil pump rated pressure 20mpa

Oil pump rated flow 20l/min

Electric motor model YBK2-160M-4 speed(r/min) 1460 rated pressure(v) 380/660 rated flow(a) 26.6/13.1 power(kw) 11

Dimension 1480*680*1290mm

Weight 820kg
