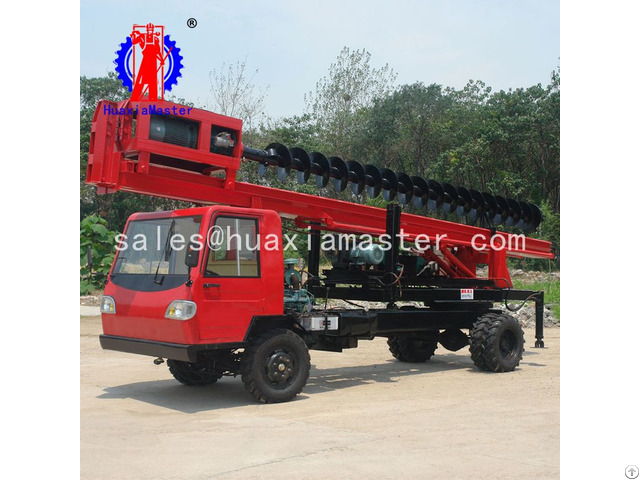

Huaxiamaster Double Seat Long Spiral Pile Driver - China

1 - The brief introduction of the double-seat long spiral pile driver

Double cab long spiral pile driver can generate electricity and external power, which is suitable for construction industry, highway, power facilities and other piling.

This car has the characteristics of fast positioning, quick piling, high efficiency and so on.

2 - The technical parameters of the double-seat long spiral pile driver

Item Unit Parameters

Dimension cm 750*200*300

Vehicle weight t 6.8

Borehole diameter mm 150-1100

Drilling depth m 6-11(Retractable drill pipe)

Rotation angle ° 270

Power head power kw 30

Power head speed rpm 40

Maximum torque kn.

m 7800

Climbing ability ° 45

Moving speed km/h 50

Drill pipe diameter mm 150-1100

Customization yes
