Hz 130y Water Drilling Rig For Sale Hundred Well Drill Machine - China

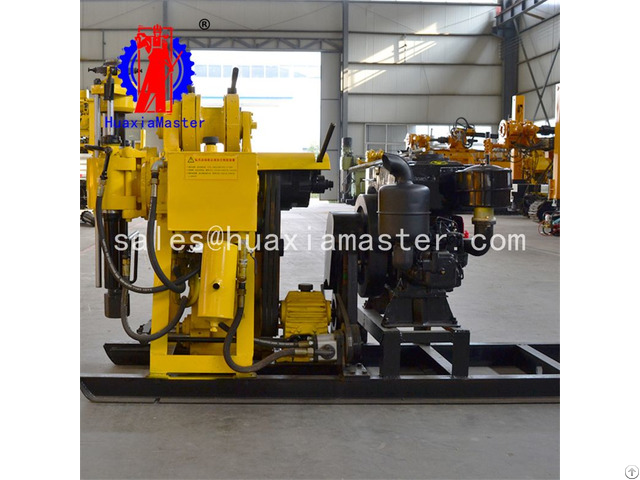

HZ-130Y water well drilling rig for sale hundred well drill machine 1 - Applications of HZ-130Y hydraulic core drilling rig

·geological survey and exploration

·basic exploration for roads

·high-rise buildings

·inspection holes for various concrete structures

·grouting holes

·direct grouting, ·civil water well ·river embankments

·ground temperature central air conditioners.

2 - Features of HZ-130Y hydraulic core drilling rig

·Hoist installation holder, forming structure of double support wheel, can withstand strong impact.

·Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.

·This machine adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.

·Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission

3 - Technical parameters of HZ-130Y hydraulic core drilling rig

HZ-130Y hydraulic core drilling rig

Drilling depth 130m

Maximum open hole caliber 220mm

End hole caliber 75mm

Drill rod caliber 50mm

Drilling angle 90-75°

Drill weight (Not include power) 750kg

Spindle

Spindle speed 142 285 570r/min

Spindle stroke 450mm

Hoist

Max.

single line hoisting capacity 1600kg

Single line lifting speed 0.41/0.82/1.64m/s

Drum diameter 140mm

Wire rope diameter 13mm

Tightrope caliber 27m

Mud pump

Type Horizontal single urn twin-action

Electric motor 95/77 l/min

Maximum pressure 1.2mpa

Work pressure 0.7mpa

Water inlet caliber 30mm

Water to exit caliber 20mm

Triangle conveyer belt B1575mm
