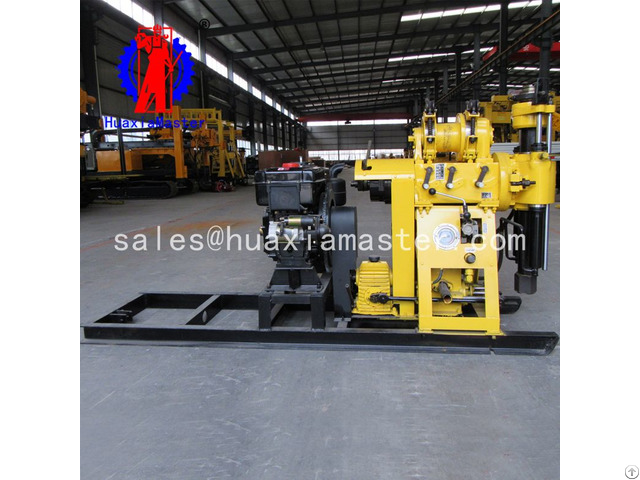

Hz 200y Hydraulic Core Drilling Rig - China

1 - Applications of HZ-200Y hydraulic core drilling rig

Geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, civil water well and ground temperature central air conditioners.

2 - Features of HZ-200Y hydraulic core drilling rig

·adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.

·the machine is equipped with taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.

·for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

·vertical spindle are fixed by four groups of bearings to ensure that the core machine is rigid enough for gravel layer and other complex geological conditions.

·we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.

3 - Technical parameters of HZ-200Y hydraulic core drilling rig

HZ-200Y hydraulic core drilling rig

Drilling depth 200m

Max open hole caliber 300mm

End hole caliber 75mm

Drill rod caliber 60mm

Drilling angle 90°-75°

Drill weight(without power) 1100kg

Triangle conveyer belt B950*4 B1700*3

The main machine moving distance 300mm

Power Diesel engine 22HP Electric motor 15kw

Spindle

Spindle speed 64/128/287/557 r/min

Spindle stroke 450mm

Hoist

Max.

lifting capacity 2400kg

Single line lifting speed 0.41/ 0.82/1.64 m/s

Wire rope caliber 13mm

Wire rope length 35m

Hug floodgate caliber 260mm

Hug floodgate belt width 70mm

Mud pump

Type Horizontal single-urn twin-action

Displacement Diesel engine 170L/min

Electric motor 150L/min

Maximum pressure 3Mpa

Work pressure 1.5Mpa

Inlet pipe caliber 40mm

Outlet pipe caliber 30mm

Triangle conveyer belt B1728mm

Mud pump

Type CBT—F—314

Triangle conveyer belt B1100× 1
