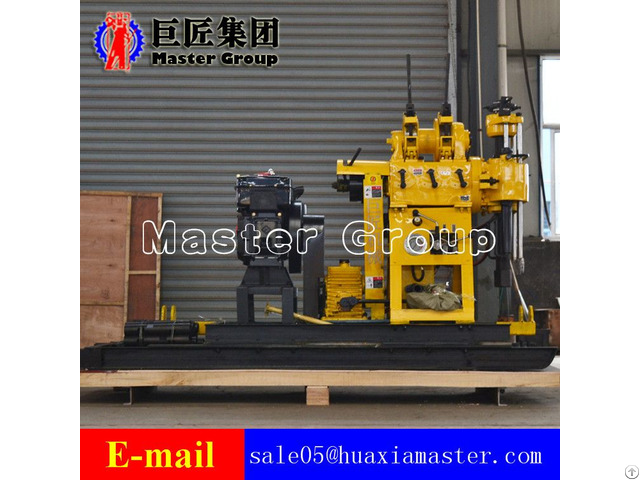

Hz 200yy Hydraulic Water Well Drilling Rig - China

1 - The applications of HZ-200YY drilling rig

HZ-200YY drilling rig is mainly used for water well, field irrigation well, engineering water well, precipitation well and so on;geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees.

2 - The features of HZ-200YY drilling rig

The highest speed can reach 1045r/min with 5 gears, improved drill efficiency

Adopted 53 x 59 drilling rod, high rigidity and strong delivery torque

Equipped with national patent technology---taper clutch, make the machine easy to operate and free maintenance.

Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.

Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.

3 - The specifications of HZ-200YY drilling rig

Maximum open hole diameter 300mm

End hole diameter 75mm

Drilling pipe diameter 50mm

Drilling angle 90°

Drilling rig weight (without power) 975kg

triangular belt B950 x 4; B1700 x 3

Active move distance 300mm

Power diesel engine 20hp electric motor 15kw

Spindle

Spindle rotating speed 64/128/287/557r/min

Spindle stroke 450mm

Windlass

Maximum lifting power of a single rope 2400kg

Lifting speed of a single rope 0.41/0.82/1.64m/s

Wire rope diameter 13mm

Drum capability 35m

Band-type break diameter 260mm

Band-type break belt width 70mm

Mud pump

Model horizontal single-urn twin-action

Displacement diesel engine 170l/min electric motor 150l/min

Maximum pressure 3mpa

Work pressure 1.5mpa

Water inlet pipe diameter 40mm

Water outlet pipe diameter 30mm

Triangular belt B1728mm`
