Kqz 200d Air Pressure And Electricity Joint Action Dth Drilling Rig - China

price: 4600.00 Dollar US$

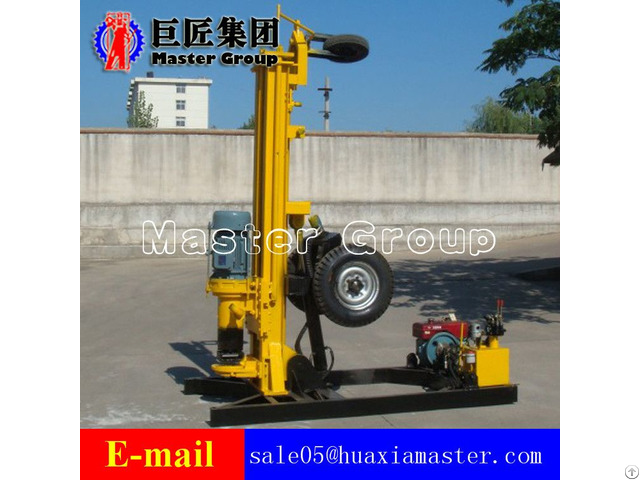

Kqz 200d Air Pressure And Electricity Joint Action Dth Drilling Rig

Products Photos Catalog Kqz 200d Air Pressure Photos Catalog

1 - The brief introductions of KQZ-200D pneumatic drilling rig

KQZ-200D drilling rig is suitable for drilling and geothermal drilling.

It has many advantages, such as large diameter, deep drilling, fast footage, flexible movement and wide application area.

2 - The Specifications of KQZ-200D pneumatic drilling rig

KQZ-200D

Borehole diameter mm 100-254

Borehole depth m 200

Drilling angle ° 45-90

One-time feed stroke mm 1500

Motor power kw 11

Diesel engine power hp 8.5

Rotating speed of drilling tools rpm 52

Air pressure mpa 1.45-2.5

Air consumption l/min 15-27

Total weight kg 650
