Qtz 1 Portable And Compact Soil Sampling Rig Manufacturer For China - China

price: 4600.00 Dollar US$

1 - The Brief Introductions of QTZ-1 soil sampling rig

QTZ-1 portable soil drilling rig is a portable soil sampling drilling machine developed by Shandong Master Machinery Group Co.,Ltd., which is comparable to a huge hydraulic and pneumatic drilling rig.

The drilling rig is a dynamic gasoline driller usede for soil sampling, The rig uses gasoline power and is simple in operation.

The rig is safe and stable in performance.

It can greatly reduce the labor force, taking into account the rapid and simple sampling speed.

2 - Applications of QTZ-1

Geotechnical engineering investigation,environment al soil survey,agricultural soil survey.

Groundwater survey,coastal geological survey,wetland environment investigation.

Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.

3 - Specifications of QTZ-1

QTZ-1 portable soil sampling rig

Core depth 5m-10m

Power power 2.8hp

fire mode backflush pull rope

oil consumption 0.5l/h

Impact times 1500r /min

Impact energy 20j-55j

Host weight 23kg

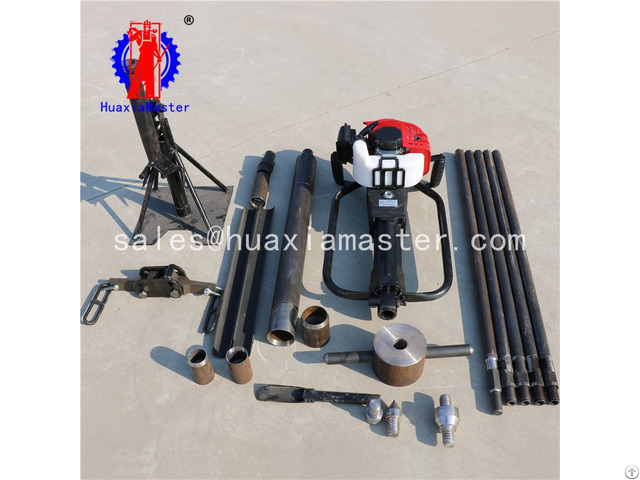

4 - Configuration list of QTZ-1

Item Parameter Unit Qu antity

Portable driller QTZ-1 platform 1

Side buckle impact take over 34*200mm pc 1

Square collar 34*170mm pc 4

Square buckle drill pipe 34*910mm pc 5

Square buckle reducing nipple 54/34 pc 1

Collar 54*140mm pc 1

Open tube 54*600mm pc 1

Inner edge pipe boots 54*90mm pc 1

Outer edge pipe boots 54*90mm pc 1

Square buckle reducing nipple 73/34 pc 1

Collar 73*140mm pc 1

Open tube 73*600mm pc 1

Inner edge pipe boots 73*90mm pc 1

Outer edge pipe boots 73*90mm pc 1

Portable sounding hammer 10kg pc 1

Square contact probe 34*98mm pc 1

Square buckle and pull the counter cap pc 1

Puller Three force arm platform 1

The ratio of oil 25: 1 pc 1

Tool kit set 1


Company Contact:


  • Phone: 18865479502

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, jining , China , China

  • Email: Email


Published date: January 24, 2019 - Modified date: January 24, 2019

  • Business Description: Shandong Master Machinery Group Co., Ltd. is located in Jining city, Shandong Province , which is known as "The hometown of Confucius, formal state" reputation .

    Company east to “ Oriental holy city”of qufu, west to “hero”of liangshan, “qilu graceful” weishan lake in the south, "wuyue exclusive" Tarzan in the north, The martial arts are prosperous, and the people are geeky.

    convenient transportation like Jining airport, beijing-shanghai high-speed railway, lunan high-speed railway, beijing-taiwan expressway, zhanlan high-speed crisscross, , communication developed.

    Shandong Master Machinery Group Co., Ltd. as parent company and head office hold the spirit of "delivering the spirit of craftsman and the quality of the great craftsman" for a long time , Pragmatic development will strengthen our progress.

    Nowadays, it has developed into a collectivized enterprise integrating r&d design, production processing and marketing.

    The group company mainly provides solutions for engineering and mine construction.

    With high quality products, good service and honest reputation, our company has established a solid material supply relationship with several universities, research institutes, design institutes and reconnaissance institutes.

    And stand out from a large number of national key project construction projects , The market performance is among the best in the industry.

    The group company actively responds to the national "One Belt And One Road" policy to go abroad.

    Drilling rig products are now sold to many countries in Europe, central Asia, southeast Asia and Africa.

    Our company's independent brand "HuaxiaMaster" has become a well-known brand for customers.

    It is a pleasure to have friends coming from afar.

    We warmly welcome friends from all walks of life to visit our company and work together to create a better tomorrow.
