Qtz 2 Portable Sampling Drilling Rig 10m Soil Gasoline Impact Sand Reconnaissance Equipment - China

price: 2700.00 Dollar US$

1 - Brief introduction of QTZ-2 soil sampling drilling rig

QTZ-2 soil sampling drilling rig adopts the more power, and the impact force is stronger and the drilling depth is deeper, which can drill up to 10-15 meters.

2 - Applications of QTZ-2 soil sampling drilling rig

·Groundwater survey; coastal geological survey; wetland environment investigation.

·Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.

·Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.

2 - Technical parameters of QTZ-2 soil sampling drilling rig

QTZ-2 soil sampling drilling rig Power power 3.3HP lighter way backflush pull rope oil consumption 0.55 l/h

Impact times 1650r/min

Impact energy 35J-65J

Core depth 10m-15m

Host weight 25kg

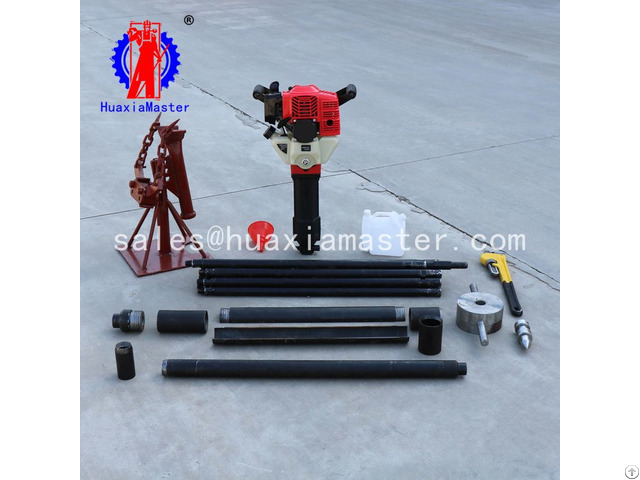

4 - Configurations list of QTZ-2 soil sampling drilling rig

Item Parameter Platform Quantity

Soil sampling drilling rig QTZ-2 set 1

Side buckle impact take over 32*150 pc 1

Tapered tap 32*80 pc 13

Drill pipe 32*700 pc 13

Taper tap 32*100 pc 13

Reducing nipple 32*50 pc 1

Collar 50*150 pc 1

Open tube 50*600 pc 1

Double-edged pipe boots 50*100 pc 2

Reducing nipple 32*70 pc 1

Collar 70*150 pc 1

Open tube 70*600 pc 1

Inner edge pipe boots 70*100 pc 1

Outer edge pipe boots 70*100 pc 1

Portable sounding hammer 10kg pc 1

Sounding the reducing nipple 32 pc 1

Double sided hand 32 pc 1

Touch probe 32 pc 1

Puller three force arm set 1

The ratio of oil 25: 1 pc 1

Oil funnel pc 1

Pipe wrench 80mm hold 1

Special internal six party multi-function 1

Wrench 24/27 1

Internal six party #6 1

Six prismatic wrench 1

Spark plug wrench 1

Screw driver 1

Spare spark plug 1
