Qtz 2 Portable Soil Sampling Rig Manufacturer For China - China

price: 5200.00 Dollar US$

1 - The brief introduction of QTZ-2 portable drilling rig

QTZ-2 portable soil drilling rig is a upgraded product of the QTZ-1 portable soil drilling rig.

The rig adopts the more power, and the impact force is stronger and the drilling depth is deeper, which can drill up to 10~15 meters.

2 - The applications of QTZ-2 portable soil drilling rig

Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.

Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.

Groundwater survey; coastal geological survey; wetland environment investigation.

3 - The technical parameters of QTZ-2 portable soil drilling rig

QTZ-2 portable earth drilling rig

Core depth 10m-15m

Power power 3.3HP lighter way backflush pull rope oil consumption 0.55 l/h

Impact times 1650r/min

Impact energy 35J-65J

Host weight 25kg

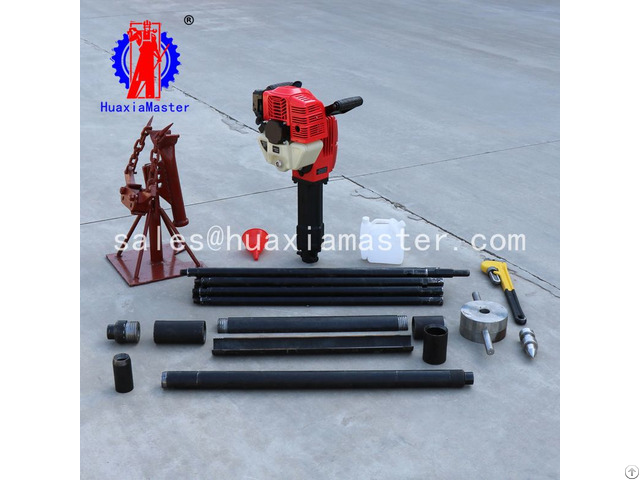

4 - The Configurations List of QTZ-2

Item Parameter Platform Quantity

Portable earth drill QTZ-2 set 1

Side buckle impact take over 32*150 pc 1

Tapered tap 32*80 pc 13

Drill pipe 32*700 pc 13

Taper tap 32*100 pc 13

Reducing nipple 32*50 pc 1

Collar 50*150 pc 1

Open tube 50*600 pc 1

Double-edged pipe boots 50*100 pc 2

Reducing nipple 32*70 pc 1

Collar 70*150 pc 1

Open tube 70*600 pc 1

Inner edge pipe boots 70*100 pc 1

Outer edge pipe boots 70*100 pc 1

Portable sounding hammer 10kg pc 1

Sounding the reducing nipple 32 pc 1

Double sided hand 32 pc 1

Touch probe 32 pc 1

Puller three force arm set 1

The ratio of oil 25: 1 pc 1

Oil funnel pc 1

Pipe wrench 80mm hold 1

Special internal six party multi-function 1

Wrench 24/27 1

Internal six party #6 1

Six prismatic wrench 1

Spark plug wrench 1

Spare spark plug 1

Screw driver 1


Company Contact:


  • Phone: 18865479502

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, jining , China , China

  • Email: Email


Published date: January 24, 2019

  • Business Description: Shandong Master Machinery Group Co., Ltd. is located in Jining city, Shandong Province , which is known as "The hometown of Confucius, formal state" reputation .

    Company east to “ Oriental holy city”of qufu, west to “hero”of liangshan, “qilu graceful” weishan lake in the south, "wuyue exclusive" Tarzan in the north, The martial arts are prosperous, and the people are geeky.

    convenient transportation like Jining airport, beijing-shanghai high-speed railway, lunan high-speed railway, beijing-taiwan expressway, zhanlan high-speed crisscross, , communication developed.

    Shandong Master Machinery Group Co., Ltd. as parent company and head office hold the spirit of "delivering the spirit of craftsman and the quality of the great craftsman" for a long time , Pragmatic development will strengthen our progress.

    Nowadays, it has developed into a collectivized enterprise integrating r&d design, production processing and marketing.

    The group company mainly provides solutions for engineering and mine construction.

    With high quality products, good service and honest reputation, our company has established a solid material supply relationship with several universities, research institutes, design institutes and reconnaissance institutes.

    And stand out from a large number of national key project construction projects , The market performance is among the best in the industry.

    The group company actively responds to the national "One Belt And One Road" policy to go abroad.

    Drilling rig products are now sold to many countries in Europe, central Asia, southeast Asia and Africa.

    Our company's independent brand "HuaxiaMaster" has become a well-known brand for customers.

    It is a pleasure to have friends coming from afar.

    We warmly welcome friends from all walks of life to visit our company and work together to create a better tomorrow.
