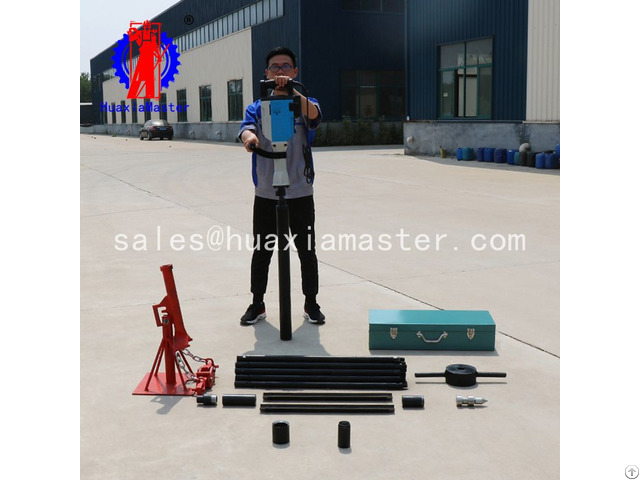

1 - Brief introductions of QTZ-3D electric soil sampling drilling rig

QTZ-3D electric soil sampling drilling rig is an electric version of the QTZ-3 soil drilling rig (gasoline engine).

The improvement of QTZ-3D electric soil sampling drilling rig is mainly engine system.

While QTZ-3 soil sampling drilling rig is equipped with gasoline engine, QTZ-3D is powered by electric.

The QTZ-3D electric soil sampling drilling rig selects pure copper winding two phase electric motor as a power source.

The advantage of using the electric engine as the power source is its stability, and it can continuously improve the working efficiency with a certain kind of power operation equipment.

It greatly improves the feed speed.

In addition, QTZ-3D electric soil sampling drilling rig is easy to operate, safe and stable, and can greatly reduce the labor force during the drilling operations.

2 - Applications of QTZ-3D electric soil sampling drilling rig

·geotechnical investigation ·environmental soil survey

·gricultural soil survey

·groundwater survey

·coastal geological survey

·wetland environmental investigation

·tailing pond investigation

·archaeological investigation

·physical chemistry exploration secondary halo sampling

·the description of soil structure

3 - Technical parameter s of QTZ-3D electric soil sampling drilling rig

QTZ-3D electric soil sampling drilling rig

Voltage 220v

Power 3.6kw

Lighter way switch mode

Energy dissipation low power consumption

Impact times 2600min/m

Impact energy 60j-79j

Core depth 15m-20m

Host weight 22kg

4 - Configuration list of QTZ-3D electric soil sampling drilling rig

Item Parameter Unit Quantity

Electric soil sampling drilling rig QTZ-3D Platform 1

Shock reception 32*150 pc 1

Cones 32*80 pc 19

Drill pipe 32*700 pc 19

Taper wire 32*100 pc 19

Reducing nipple 32*50 pc 1

Hoop 50*150 pc 1

Open tube 50*600 pc 1

The blade tube boots 50*100 pc 2

Reducing nipple 32*70 pc 1

Hoop 70*150 pc 1

Open tube 70*600 pc 1

Inner edge pipe boots 70*100 pc 1

Outer edge pipe boots 70*100 pc 1

Portable sounding hammer 10kg pc 1

Sounding the reducing nipple 32 pc 1

Double sided hand 32 pc 1

Touch probe 32 pc 1

Puller Three force arm set 1

Pipe wrench 80mm hold 1

Hold-all pc 1 Shandong Master Machinery Group Co., Ltd.
