Qtz 3d Portable And Compact Soil Sampling Rig Manufacturer For China - China

1 - The brief introductions of QTZ-3D portable electric soil drilling rig

QTZ-3D portable electric soil drilling rig is an electric version of the QTZ-3 (gasoline engine) produced by Shandong Master Machinery Group Co., Ltd.

The improvement of QTZ-3D electric soil drilling rig is mainly engine system.

While QTZ-3 is equipped with gasoline engine, QTZ-3D is powered by electric.

The QTZ-3D soil drilling rig selects pure copper winding two phase electric motor as a power source.

The advantage of using the electric engine as the power source is its stability, and it can continuously improve the working efficiency with a certain kind of power operation equipment.

It greatly improves the feed speed.

In addition, QTZ-3D electric soil drilling rig is easy to operate, safe and stable, and can greatly reduce the labor force during the drilling operations.

2 - The applications of QTZ-3D portable electric soil drilling rig

geotechnical investigation

tailing pond investigation

archaeological investigation

physical chemistry exploration secondary halo sampling environmental soil survey

gricultural soil survey

groundwater survey

coastal geological survey

wetland environmental investigation

the description of soil structure

3 - The specifications of QTZ-3D electric soil sampling drilling rig

QTZ-3D portable electric earth drilling rig

Voltage 220v

Power 3.6kw

Lighter way switch mode

Energy dissipation low power consumption

Impact times 2600min/m

Impact energy 60j-79j

Core depth 15m-20m

Host weight 22kg

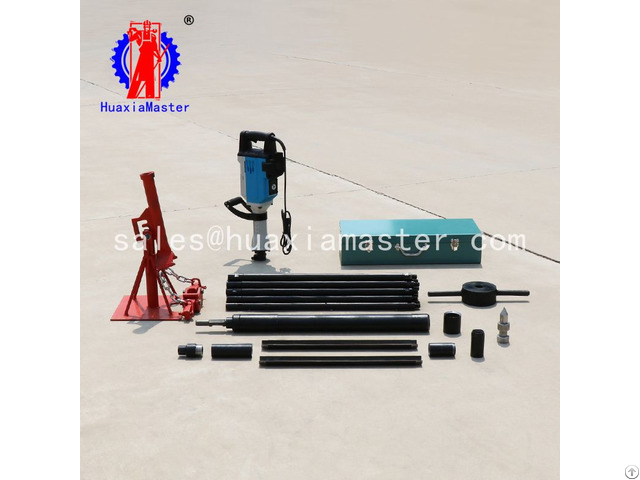

4 - The configuration list of QTZ-3D Item Parameter Unit Quantity

Electric earth drilling rig QTZ-3D Platform 1

Shock reception 32*150 pc 1

Cones 32*80 pc 19

Drill pipe 32*700 pc 19

Taper wire 32*100 pc 19

Reducing nipple 32*50 pc 1

Hoop 50*150 pc 1

Open tube 50*600 pc 1

The blade tube boots 50*100 pc 2

Reducing nipple 32*70 pc 1

Hoop 70*150 pc 1

Open tube 70*600 pc 1

Inner edge pipe boots 70*100 pc 1

Outer edge pipe boots 70*100 pc 1

Portable sounding hammer 10kg pc 1

Sounding the reducing nipple 32 pc 1

Double sided hand 32 pc 1

Touch probe 32 pc 1

Puller Three force arm set 1

Pipe wrench 80mm hold 1

Hold-all pc 1
