Qz 1a Two Phase Electric Portable Sampling Drilling Rig - China

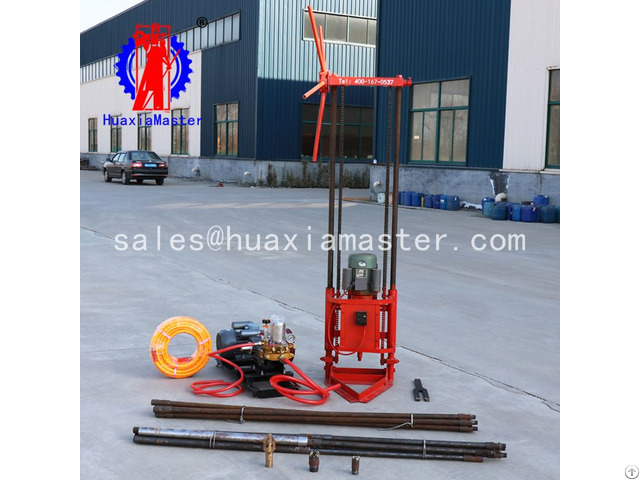

1 - Brief Introductions of QZ-1A core sampling rig

QZ-1A two-phase electric sampling drilling rig is a portable core sampling drilling rig produced by Shandong Master Machinery Group Co., Ltd. It is suitable for all kinds of geological exploration, like industrial and civil buildings, bridges, railways, roads and so on.

QZ-1A core sample drilling rig is only 80kg; height is less than 2 meters, and the drilling rig can been break down structure.

Hence it is easy to move and operated.

2 - Specifications of QZ-1A core sampling rig

QZ-1A core sampling rig

Drilling depth (m) Soil layer: 20-25

Drilling diameter 32-46

Lithosphere: 15-20

Drilling pipe diameter (mm) 25

Rotate speed(r/min) 175

Power (kw) 3

Torque (n.

m) 80

Weight (kg) 80

Dimensions (l*w*h) 3 - The Configuration List of QZ-1A core sampling rig

Item Parameters Unit Quantity

Two phase electric drilling rig QZ-1A Set 1

Drill pipe 25*1500 pc 6

Drill pipe 25*800 pc 8

Joint 32 pc 14

Core barrel 32*800 pc 1

Alloy bit 32 pc 1

Reducing nipple 45/32 pc 1

Core barrel 45*800 pc 1

Alloy bit 46 pc 1

Three-wing bit 60 pc 1

Safety clamp pc 1

Water seal Y Type 30*45*8 pc 4

Control wheel Set 1
