Qz 2a Three Phase Electric Portable Sampling Drilling Rig - China

price: 5200.00 Dollar US$

Qz 2a Three Phase Electric Portable Sampling Drilling Rig

Products Photos Catalog Phase Electric Photos Catalog

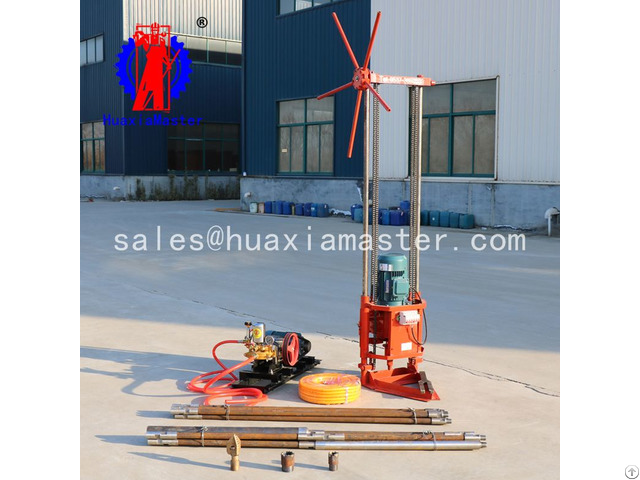

1 - Brief introduction of QZ-2A electric sampling drilling rig

QZ-2A type three-phase sampling drill rig is a portable core sampling drilling rig, produced by Shandong Master Machinery Group Co., Ltd. It is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geological exploration.

2 - Specifications of QZ-2A electric sampling drilling rig

QZ-2A electric sampling drilling rig

Drilling depth(m) layer 91：10-15m

rock 91：5-10m

rock 75：10-15m

rock 60：15-20m

rock 46：20-25m

Borehole diameter (mm) 32-91

Drilling pipe diameter (mm) 32

Rotate speed(r/min) 185-380

Torque(n.

m) 80

Power(kw) 3

Weight(kg) 95

Dimension(l*w*h) 600*450*1900

3 - Configuration List of QZ-2A

Item Parameter Unit Quantity

Three phase electric sampling drill QZ-2A platform 1

Drilling pipe 28*1500 pc 6

Drilling pipe 28*800 pc 8

Drilling joint 35 pc 14

Reducing nipple 45/35 pc 1

Core barrel 45*800 pc 1

Alloy bit 46 pc 1

Reducing nipple 58/35 pc 1

Core barrel 58*800 pc 1

Alloy bit 60 pc 1

Three-wing bit 0 pc 1

Safety clamp hold 1

Water seal Y 30*50*10 pc 4

Oil seal 17*50*10 pc 2

Control wheel set 1
