Qz 2a Three Phase Electric Sampling Drilling Rig Machine - China

price: 5200.00 Dollar US$

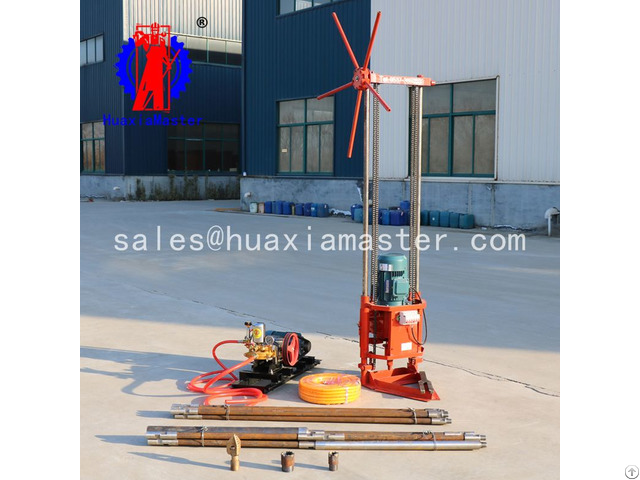

Qz 2a Three Phase Electric Sampling Drilling Rig Machine

Products Photos Catalog Phase Electric Photos Catalog

1 - Brief introduction of QZ-2A three phase electric sampling drilling rig

QZ-2A is a three phase electric sampling drilling rig, produced by Shandong Master Machinery Group Co., Ltd. It is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geological exploration.

2 - Technical parameters of QZ-2A three phase electric sampling drilling rig QZ-2A three phase electric sampling drilling rig

Borehole diameter (mm) 32-91 Drilling depth(m) soilφ91：10-15m

stoneφ91：5-10m

stoneφ75：10-15m

stoneφ60：15-20m

stoneφ46：20-25m

Drilling pipe diameter (mm) 28

Rotate speed(r/min) 185-380

Torque(n.

m) 80

Power(kw) 3

Dimension(l*w*h) 600*450*1900

Weight(kg) 95

3 - Configuration list of QZ-2A three phase electric sampling drilling rig

Item Parameter Unit Quantity

Three phase electric sampling drilling rig QZ-2A platform 1

Drilling pipe 28*1500 pc 6

Drilling pipe 28*800 pc 8

Drilling joint 35 pc 14

Reducing nipple 45/35 pc 1

Core barrel 45*800 pc 1

Alloy bit 46 pc 1

Reducing nipple 58/35 pc 1

Core barrel 58*800 pc 1

Alloy bit 60 pc 1

Three-wing bit 0 pc 1

Safety clamp hold 1

Water seal Y30*50*10 pc 4

Oil seal 17*50*10 pc 2

Control wheel set 1


Company Contact:


  • Phone: 18865479508

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, JINING , China , China

  • Email: Email


Published date: January 29, 2019

  • Business Description: Master Group Co., Ltd. is dedicated to providing the drilling rig and pile driver for engineering and mining construction.

    As a active response to the Belt and Road Initiative, We have took numerous efforts to go abroad.

    Our products have been sold to Europe, CentralAsia, Southeast Asia, Africa and dozens of countries and regions.

    We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements.

    We are a leading company in the drill rig industry in China.

    We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes.

    And we have participated in a number of national key projects and earned our reputation.

    Our Companys “HuaxiaMaster” has become a well-known brand in China.
