Qz 2b Gasoline Engine Core Drilling Rig Manufacturer - China
price: 4200.00 Dollar US$

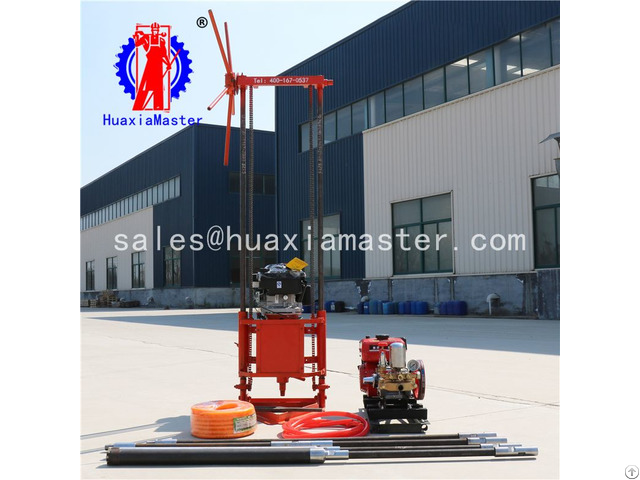

1 - Brief introduction of QZ-2B gasoline core drilling rig
QZ-2B type gasoline engine portable sampling Drilling is produced by Shandong Master Machinery Group Co., Ltd. It is suitable for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole and small household wells check out.
QZ-2B drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2 - Specifications of QZ-2B gasoline core drilling rig
QZ-2B drilling rig
Bottom hole diameter (mm) 32-91
Drilling depth(m) Soil 91:10-15m
Tone 91:5-10m
Stone 75:10-15m
Stone 60:15-20m
Stone 46:20-25m
Drilling pipe (mm) 30
Rotating speed(r/min) 200-570
Torque(n.
m) 110
displacement(cc) 196
Dimension(l*w*h) 600*450*1900
Weight(kg) 90
Gasoline engine house power(hp) 5 (3.5kw)
3 - The configuration list of QZ-2B gasoline core drilling rig
Item Parameter Unit Quantity
Gasoline core drilling rig QZ-2B set 1
Drilling pipe 28*1500 pc 6
Drilling pipe 28*800 pc 8
Pipe joint 35 pc 14
Reducing nipple 45/35 pc 1
Core barrel 45*800 pc 1
Alloy bit 46 pc 1
Reducing nipple 58/35 pc 1
Core barrel 58*800 pc 1
Three-wing bit 60 pc 1
Alloy bit 60 pc 1
Safety clamp hold 1
Water seal 30*50*10 pc 4
Oil seal 30*50*10 Oil seal 17*50*10 Control wheel pc 1
