Qz 2b Gasoline Engine Sampling Drilling Rig Supplier For China - China

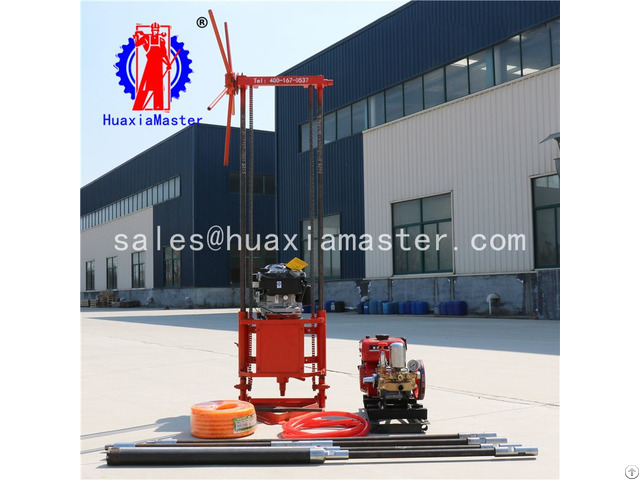

1 - Brief introduction of QZ-2B gasoline engine sampling drilling rig

QZ-2B gasoline engine sampling drilling rig is produced by Shandong Master Machinery Group Co., Ltd. It is suitable for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole and small household wells check out.

QZ-2B gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.

2 - Technical parameters of QZ-2B gasoline engine sampling drilling rig

QZ-2B gasoline engine sampling drilling rig

Bottom hole diameter (mm) 32-91 Drilling depth(m) soil φ91：10-15m

stoneφ91：5-10m

stoneφ75：10-15m

stoneφ60：15-20m

stoneφ46：20-25m

Drilling pipe (mm) 28

Rotating speed(r/min) 200-570

Torque(n.

m) 110

Gasoline engine house power(hp) 5 (3.5kw) displacement(cc) 196

Dimension(l*w*h) 600*450*1900

Weight(kg) 90

3 - Configuration list of QZ-2B gasoline engine sampling drilling rig

Item Parameter Unit Quantity

Gasoline engine sampling drilling rig QZ-2B set 1

Drilling pipe 28*1500 pc 6

Drilling pipe 28*800 pc 8

Pipe joint 35 pc 14

Reducing nipple 45/35 pc 1

Core barrel 45*800 pc 1

Alloy bit 46 pc 1

Reducing nipple 58/35 pc 1

Core barrel 58*800 pc 1

Three-wing bit 60 pc 1

Alloy bit 60 pc 1

Safety clamp hold 1

Water seal 30*50*10 pc 4

Oil seal 30*50*10 Oil seal 17*50*10 Control wheel pc 1

If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
