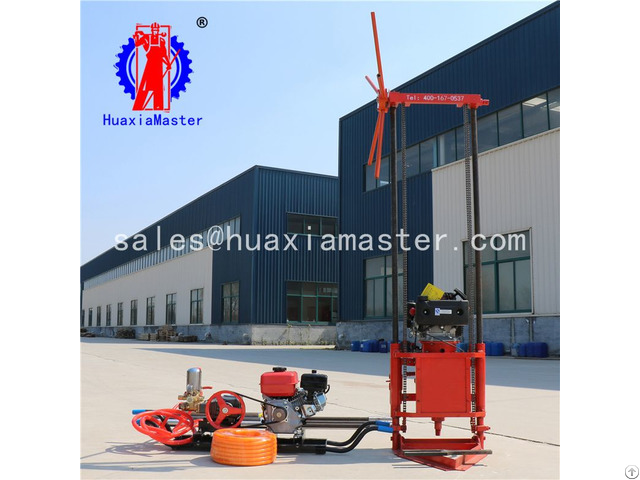

Qz 2c Gasoline Engine Portable Sampling Drilling Rig - China

price: 5800.00 Dollar US$

1 - Brief introductions of QZ-2C gasoline core drilling rig QZ-2C type gasoline engine portable sampling drill rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.

QZ-2C drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.

2 - Specifications of QZ-2C gasoline core drilling rig QZ-2C gasoline core drilling rig Drilling depth(m) soil layer: 91:10-15m

91:5-10m

lithosphere 75:10-15m

lithosphere 60:15-20m

lithosphere 46:20-30m

Bottom hole diameter (mm) 32-91

Drilling pipe diameter (mm) 30

Gasoline engine horse power(hp) 6(4.5kw) displacement(cc) 224

Dimension(l*w*h) 600*450*1900

Weight(kg) 95

3 - Configuration list of QZ-2C gasoline core drilling rig Item Parameter Unit Quantity

Gasoline core drilling rig QZ-2C set 1

Drilling pipe 30*1500 pc 6

Drilling pipe 30*800 pc 14

Pipe joint 38 pc 20

Reducing nipple 58/38 pc 2

Core barrel 58*800 pc 1

Core barrel 58*1500 pc 1

Alloy bit 60 pc 1

Diamond bit 60 pc 1

Reducing nipple 73/38 pc 2

Core barrel 73*800 pc 1

Diamond bit 75 pc 1

Alloy bit 75 pc 1

Three-wing bit 75 pc 1

Safety clamp pc 1

Water seal Y 30*50*10 pc 4

Oil seal 30*50*10 pc 1

Pipe wrench 18 pc 2

Monkey wrench pc 1

Shaft snap ring clamp pc 1

Hole snap ring clamp pc 1

Clamp pc 1

Cross screwdriver pc 1

Control wheel pc 1

Hex wrench pc 1
