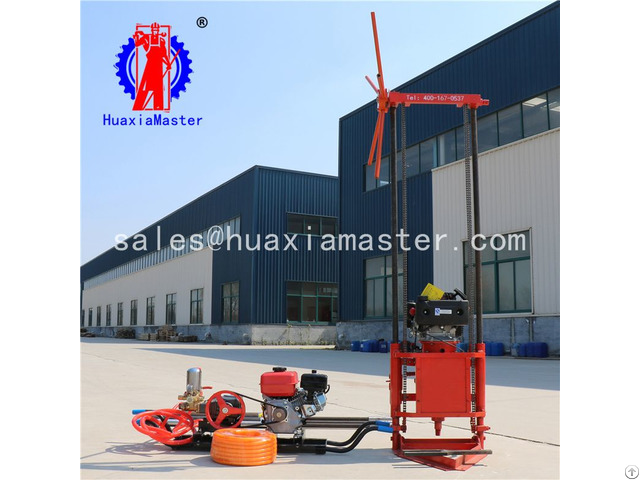

Qz 2c Gasoline Engine Sampling Drilling Machine - China

price: 5600.00 Dollar US$

1 - Brief introductions of QZ-2C gasoline engine sampling drilling rig QZ-2C gasoline engine sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.

QZ-2C gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.

2 - Technical parameters of QZ-2C gasoline engine sampling drilling rig

QZ-2C gasoline engine sampling drilling rig Drilling depth(m) soil layer φ91:10-15m

φ91:5-10m

lithosphereφ75:10-1 5m

lithosphereφ60:15-2 0m

lithosphereφ46:20-3 0m

Bottom hole diameter (mm) 32-91

Drilling pipe diameter (mm) 30

Gasoline engine horse power(hp) 6(4.5kw) displacement(cc) 224

Dimension(l*w*h) 600*450*1900

Weight(kg) 95

3 - Configuration list of QZ-2C gasoline engine sampling drilling rig

Item Parameter Unit Quantity

Gasoline engine sampling drilling rig QZ-2C set 1

Drilling pipe 30*1500 pc 6

Drilling pipe 30*800 pc 14

Pipe joint 38 pc 20

Reducing nipple 58/38 pc 2

Core barrel 58*800 pc 1

Core barrel 58*1500 pc 1

Diamond bit 60 pc 1

Alloy bit 60 pc 1

Reducing nipple 73/38 pc 2

Core barrel 73*800 pc 1

Diamond bit 75 pc 1

Three-wing bit 75 pc 1

Alloy bit 75 pc 1

Safety clamp pc 1

Water seal Y 30*50*10 pc 4

Oil seal 30*50*10 pc 1

Pipe wrench 18 pc 2

Monkey wrench pc 1

Shaft snap ring clamp pc 1

Hole snap ring clamp pc 1

Cross screwdriver pc 1

Clamp pc 1

Hex wrench pc 1

Control wheel pc 1

If you need a wooden base, a high pressure pump, and a high pressure water pipe, please specify.

Shandong Master Machinery Group Co., Ltd.

Sales Manager: Candice Cheng

QQ: 1447852867

Tel: 0086-537-2335787

Mob: 0086-18865479502

Whatsapp: 0086188654795 02

Wechat: 008618865479502


Company Contact:


  • Phone: 18865479502

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, jining , China , China

  • Email: Email
