Qz 2d Three Phase Electric Sampling Drilling Machine - China

price: 5800.00 Dollar US$

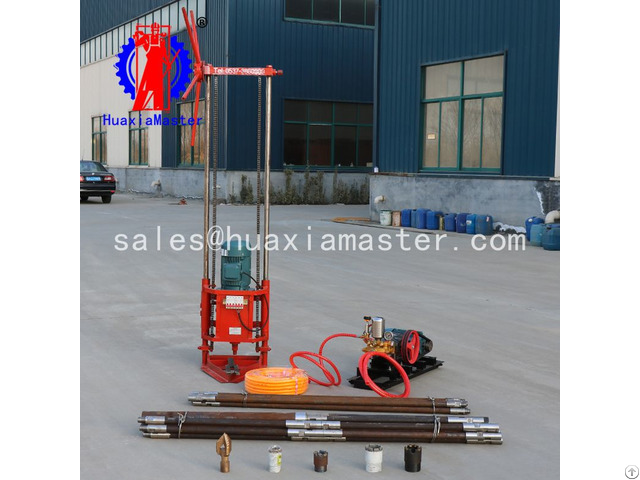

1 - Brief introductions of QZ-2D three phase electric sampling drilling rig

QZ-2D three phase electric sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.

QZ-2D three phase electric sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.

2 - Technical parameters of QZ-2D three phase electric sampling drilling rig

QZ-2D three phase electric sampling drilling rig

End hole diameter (mm) 32-110 Drilling depth(m) soil Layer φ110:10m

soil Layer φ91:10-15m

lithosphereφ91:5-10 m

lithosphere φ75:10-15m

lithosphereφ60:15-2 0m

lithosphereφ46:20-3 0m

Drilling pipe diameter(mm) 30

model YX3-112M-4

Dimension(l*w*h) 600*650*2330

Weight(kg) 110

Three phase electric engine power 4kw

3 - Configuration List of QZ-2D three phase electric sampling drilling rig

Item Parameter Unit Quantity

Three phase electric sampling drilling rig QZ-2D set 1

Drilling pipe 30*1500 pc 6

Drilling pipe 30*800 pc 14

Pipe joint 38 pc 20

Reducing nipple 58/38 pc 2

Core barrel 58*800 pc 1

Core barrel 58*1500 pc 1

Alloy bit 60 pc 1

Diamond bit 60 pc 1

Reducing nipple 73/38 pc 2

Core barrel 73*800 pc 1

Alloy bit 75 pc 1

Diamond bit 75 pc 1

Three-wing bit 75 pc 1

Safety clamp pc 1

Water seal Y 30*50*10 pc 4

Oil seal 30*50*10 pc 1

Pipe wrench 18 pc 2

Monkey wrench pc 1

Shaft snap ring clamp pc 1

Hole snap ring clamp pc 1

Pliers pc 1

Hex wrench pc 1

Control wheel pc 1

Cross screwdriver pc 1

If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify Shandong Master Machinery Group Co., Ltd.
