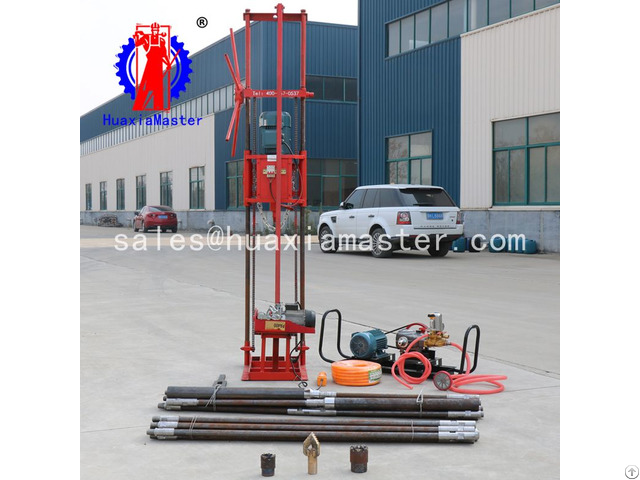

Qz 2ds Gasoline Engine Portable Core Drilling Rig - China

1 - The brief introductions of QZ-2DS three phase core drilling rig

QZ-2DS type portable sampling drill is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.

QZ-2DS drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.

2 - Specifications of QZ-2DS three phase core drilling rig

QZ-2DS drilling rig

End hole diameter (mm) 32-110 Drilling depth(m) soil 110：10m

soil 91：10-15m

stone 91：5-10m

stone 75：10-15m

stone 60：15-20m

stone 46：20-30m

Drilling pipe diameter (mm) 30 Three phase electric engine power 4kw

model YX3-112M-4

Weight(kg) 110

Dimension(l*w*h) 600*650*2330

3 - Configuration List of QZ-2DS drilling rig

Item Parameter Unit Quantity

Three phase electric drilling rig QZ-2DS set 1

Drilling pipe 30*1500 pc 6

Drilling pipe 30*800 pc 14

Pipe joint 38 pc 20

Reducing nipple 58/38 pc 2

Core barrel 58*800 pc 1

Core barrel 58*1500 pc 1

Alloy bit 60 pc 1

Diamond bit 60 pc 1

Reducing nipple 73/38 pc 2

Core barrel 73*800 pc 1

Safety clamp pc 1

Alloy bit 75 pc 1

Diamond bit 75 pc 1

Three-wing bit 75 pc 1

Water seal Y 30*50*10 pc 4

Oil seal 30*50*10 pc 1

Pipe wrench 18 pc 2

Monkey wrench pc 1

Hole snap ring clamp pc 1

Shaft snap ring clamp pc 1

Pliers Pair 1

Cross screwdriver pc 1

Hex wrench pc 1

Control wheel pc 1
