Qz 2ds Three Phase Electric Sampling Drilling Rig Embedded Hole Guiding - China

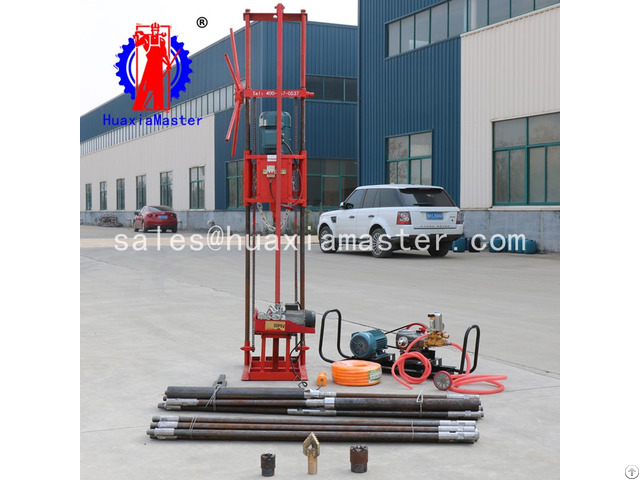

Qz 2ds Three Phase Electric Sampling Drilling Rig Embedded Hole Guiding

1 - Brief introductions of QZ-2DS three phase electric sampling drilling rig

QZ-2DS three phase electric sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.

QZ-2DS three phase electric sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.

2 - Technical parameters of QZ-2DS three phase electric sampling drilling rig

QZ-2DS three phase electric sampling drilling rig

End hole diameter (mm) 32-110

Drilling depth（m） soilφ110： 10m

soilφ91：10-15m

stoneφ91：5-10m

stoneφ75：10-15m

stoneφ60：15-20m

stoneφ46：20-30m

Drilling pipe diameter (mm) 30

Three phase electric engine power 4kw

model YX3-112M-4

Dimension（l*w*h） 6 00*650*2330

Weight（kg） 110

3 - Configuration list of QZ-2DS three phase electric sampling drilling rig

Item Parameter Unit Qu antity

Three phase electric sampling drilling rig QZ-2DS set 1

Drilling pipe 30*1500 pc 6

Drilling pipe 30*800 pc 14

Pipe joint 38 pc 20

Reducing nipple 58/38 pc 2

Core barrel 58*800 pc 1

Core barrel 58*1500 pc 1

Alloy bit 60 pc 1

Diamond bit 60 pc 1

Reducing nipple 73/38 pc 2

Core barrel 73*800 pc 1

Alloy bit 75 pc 1

Diamond bit 75 pc 1

Three-wing bit 75 pc 1

Safety clamp pc 1

Water seal Y 30*50*10 pc 4

Oil seal 30*50*10 pc 1

Pipe wrench 18 pc 2

Monkey wrench pc 1

Shaft snap ring clamp pc 1

Hole snap ring clamp pc 1

Pliers Pair 1

Cross screwdriver pc 1

Hex wrench pc 1

Control wheel pc 1

If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
