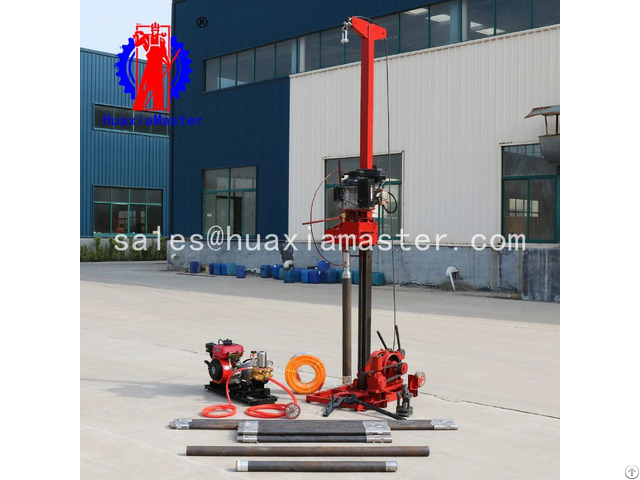

Qz 3 Light Geological Engineering 30m Depth Diesel Engine Sampling Drilling Rig - China

1 - Brief introductions of QZ-3 diesel engine sampling drilling rig

The QZ-3 diesel engine sampling drilling rig is independently developed by Shandong Master Machinery Group Co., Ltd., which is a portable multi-purpose drilling rig.

The QZ-3 diesel engine sampling drilling rig is equipped with a hoist, which is more convenient for geological drilling and lifting.

It can do standard drilling hole, earth sampling and cone penetration with the heavy hammer.

The QZ-3 diesel engine sampling drilling rig uses diesel power, and it is more convenient to purchase oil.

The rig is reasonable in design, easy to assemble and disassemble, advanced in structure, small in size, light in weight and easy to transport, which brings great convenience for field investigation and construction.

2 - Technical parameters of QZ-3 diesel engine sampling drilling rig

QZ-3 diesel engine sampling drilling rig

Borehole diameter (mm) 46-110

Drilling depth(m) soil Layerφ110：15-20m

lithosphereφ91：20-2 5m

lithosphereφ75：25-3 0m

lithosphereφ60：30-4 0m

lithosphereφ46：40-5 0m

Drilling pipe diameter (mm) 30

Torque(n.

m) 180

Weight(kg) 165

Dimension(l*w*h) 680*1200*3800(highly customizable)

3 - Configuration List of QZ-3 diesel engine sampling drilling rig

Item Specifications Unit Quantity Remarks

Base QZ-3 pc 1 Geological engineering drilling rig

Winding engine pc 1 Drilling tower pc 2

Diesel engine pc 1 Gear box pc 1 Manual windlass pc 1 Drilling pipe including joint 30*1000 pc 15 Drill pipe

Drilling pipe including joint 30*2000 pc 5 Reducing nipple 58/38 pc 1 60mm core drill tool

Core barrel 58*800 pc 1 Core barrel 58*1500 pc 1 Diamond bit 60 pc 1 Reducing nipple 73/38 pc 1 75mm core drill tool

Core barrel 73*800 pc 1 Diamond bit 75 pc 1 Safety clamp Tool

Pipe wrench Drill rod tong Oil seal pc 2 Vulnerable parts

Safety plate pc 1
