Qz 3 Portable Geological Engineering Drilling Rig Manufacturer For China - China

price: 8500.00 Dollar US$

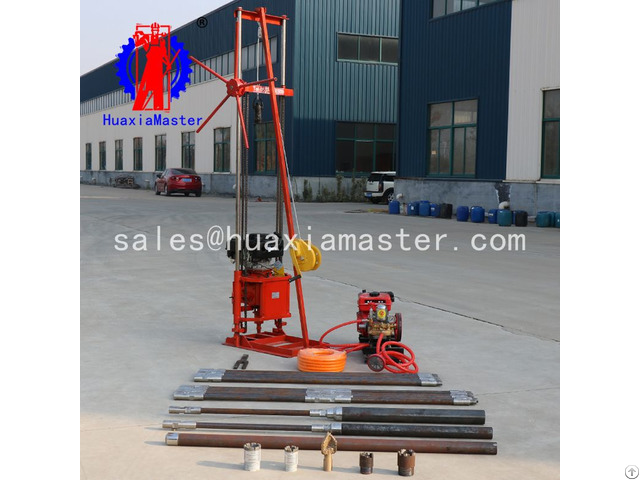

1 - Brief introductions of QZ-2CS drilling rig

QZ-2CS type gasoline engine portable sampling drill is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.

QZ-2CS drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.

2 - Specifications of QZ-2CS drilling rig QZ-2CS drilling rig Drilling depth(m) soil 91:10-15m

stone 91:5-10m

stone 75:10-15m

stone 60:15-20m

stone 46:20-30m End hole diameter (mm) 32-91

Drilling pipe diameter(mm) 30

Gasoline engine horse power(hp) 6(4.5kw) displacement(cc) 224

Dimension(l*w*h) 600*450*1900

Weight(kg) 95

3 - Configuration list of QZ-2CS

Item Parameter Unit Quantity

Gasoline core drilling rig QZ-2CS set 1

Drilling pipe 30*1500 pc 6

Drilling pipe 30*800 pc 14

Pipe joint 38 pc 20

Reducing nipple 58/38 pc 2

Core barrel 58*800 pc 1

Core barrel 58*1500 pc 1

Alloy bit 60 pc 1

Diamond bit 60 pc 1

Reducing nipple 73/38 pc 2

Core barrel 73*800 pc 1

Alloy bit 75 pc 1

Diamond bit 75 pc 1

Three-wing bit 75 pc 1

Safety clamp pc 1

Water seal Y 30*50*10 pc 4

Oil seal 30*50*10 pc 1

Pipe wrench 18 pc 2

Monkey wrench pc 1

Shaft snap ring clamp pc 1

Hole snap ring clamp pc 1

Hex wrench pc 1

Control wheel pc 1

Clamp pc 1

Cross screwdriver pc 1


Company Contact:


  • Phone: 18865479502

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, jining , China , China

  • Email: Email


Published date: January 19, 2019

  • Business Description: Shandong Master Machinery Group Co., Ltd. is located in Jining city, Shandong Province , which is known as "The hometown of Confucius, formal state" reputation .

    Company east to “ Oriental holy city”of qufu, west to “hero”of liangshan, “qilu graceful” weishan lake in the south, "wuyue exclusive" Tarzan in the north, The martial arts are prosperous, and the people are geeky.

    convenient transportation like Jining airport, beijing-shanghai high-speed railway, lunan high-speed railway, beijing-taiwan expressway, zhanlan high-speed crisscross, , communication developed.

    Shandong Master Machinery Group Co., Ltd. as parent company and head office hold the spirit of "delivering the spirit of craftsman and the quality of the great craftsman" for a long time , Pragmatic development will strengthen our progress.

    Nowadays, it has developed into a collectivized enterprise integrating r&d design, production processing and marketing.

    The group company mainly provides solutions for engineering and mine construction.

    With high quality products, good service and honest reputation, our company has established a solid material supply relationship with several universities, research institutes, design institutes and reconnaissance institutes.

    And stand out from a large number of national key project construction projects , The market performance is among the best in the industry.

    The group company actively responds to the national "One Belt And One Road" policy to go abroad.

    Drilling rig products are now sold to many countries in Europe, central Asia, southeast Asia and Africa.

    Our company's independent brand "HuaxiaMaster" has become a well-known brand for customers.

    It is a pleasure to have friends coming from afar.

    We warmly welcome friends from all walks of life to visit our company and work together to create a better tomorrow.
