Rock Breaker Gas Powered Jack Hammer Yn27c Gasoline Engine Drill - China

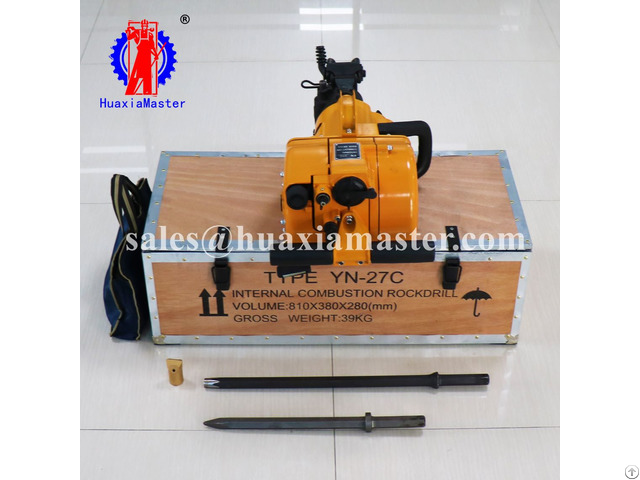

1 - Introduction of YN27C internal combustion rock drill

The YN27C internal combustion rock drill has various functions such as mining, drilling, building construction, geological exploration, cement pavement, asphalt pavement and other functions such as splitting, crushing, compacting and shovel.

It is widely used in mining, road construction, quarrying, construction, railway tamping, geological survey, national defense engineering, etc.

2 - Features of YN27C internal combustion rock drill

You only need to move the handle as required to complete the drilling or crushing operation.

The machine is easy to operate, saves time and labor, and has the characteristics of fast cutting speed and high efficiency.

The machine has reached the first-class level of similar products and can be completely interchanged with international similar products.

The drilling can be vertically downwards, horizontally upwards less than 45°, and vertically drilled up to six meters.

The weight of the main machine is only 27 kg.

Only one person can operate it.

It is easy to carry.

It is suitable for areas with high mountains, no power supply, no wind pressure equipment and temporary projects with large mobility.

This machine has wide adaptability in both high mountains and flat land, regardless of the extreme heat of 40° or the cold region of minus 40°.

This machine adopts export packaging, and all the indicators meet the export standards.

This product is exempt from inspection and does not require commodity inspection for export.

Since only gasoline needs to be added to work, no other auxiliary equipment is needed.

This machine is suitable for mining of various mines such as iron ore, copper mine, nickel mine, lead-zinc mine, gold mine, gemstone mine, granite, bluestone and jade.

3 - Parameters of YN27C internal combustion rock drill

Host weight: 27kg

Engine type: single cylinder air-cooled two-stroke gasoline engine

Carburetor type: no float

Ignition method: thermistor contactless system

Engine displacement: 185 cm³

Engine load speed (measured when chiseling five holes): ≥2450r/min

Drill rod idle speed: ≥200r/min

Shank size drill rod tail: hexagon 22*108mm

Deepest hole drilling depth: ≥6m

Fuel tank volume: ≥1.14L

Punching speed: ≥250mm/min

Gasoline and lubricating oil mixing ratio (by volume): 12: 1

Spark plug electrode gap: 0.5-0.7mm

Fuel consumption rate (measured when chiseling five holes: ≤0.12L/M

Impact energy: ≥25J
