Supply Spj 400 Water Well Drilling Rig For Price - China

price: 100.00 Dollar US$

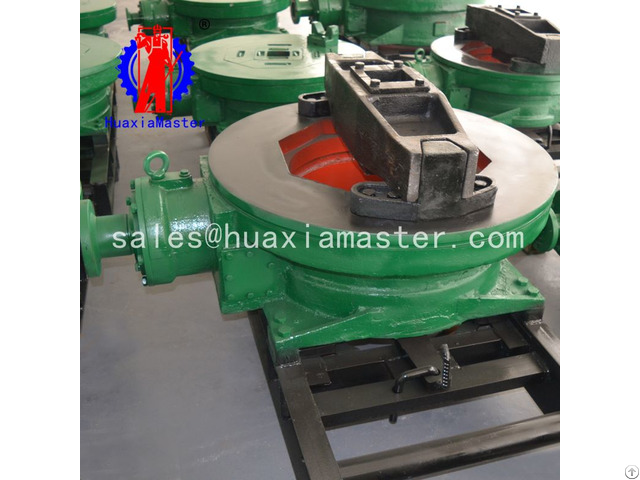

Supply Spj 400 Water Well Drilling Rig For Price

Products Photos Catalog Spj 400 Water Drilling Photos Catalog

1 - The features of SPJ-400 water well drilling rig

·SPJ-400 water well drilling rig is powered by diesel engine, and can also be driven by motor in electric power area.

·The drilling rig is a bulk rotary table drill, which is mainly used for middle Quaternary, fine grained strata and soft rock layers.

The main usageis: the hydrogeological conditions at the bottom of the exploration and survey; the drilling and drilling for the agricultural irrigation, the industrial water use, the underground tunnel ventilation, the bridge and other engineering drilling.

·When drilling rig works, mud flushing fluid (positive circulation) and rotary table are used to drive the drilling tools to rotate.

Use winch system to realized ecompression drilling, lifting drilling, down pipe, impact sampling, vertical drilling tower.

2 - The specifications of SPJ-400 water well drilling rig

Borehole diameter 500mm-1800mm

Drilling depth 400m

Maximum output torque 18kn.

m

Active drill rod 108*108*12mm

Drilling pipe 89mm

Main indlasslifting power 30kn

Assistant windlasslifting power 20kn

Rotary table latus rectum 500mm

Rotating speed (forward and inversion) 40/70/128r/min

height of the drilling tower 13m

Gross weight (excluding drill pipe) 9t

External dimension 2200*6000*13000mm


Company Contact:


  • Phone: 8619806265526

  • Address: Wu taizha road, guanhe street,, Jining , Shandong , China

  • Email: Email


Published date: July 18, 2019

  • Business Description: Group for a long time in line with the giants of masters of "the spirit of craftsman, creates quality" concept of enterprise development, challenge pragmatic development, now has developed into a collection of research and development design, manufacture and market sales in the integration of many company joint operation of collectivization, giant group members have jining machinery research institute, shandong machinery manufacturing co., LTD., the giants of the giants and huge machinery co., LTD., shandong province, China, etc.
