Upgraded Version Mountain Drilling Rig Sdz 30s - China

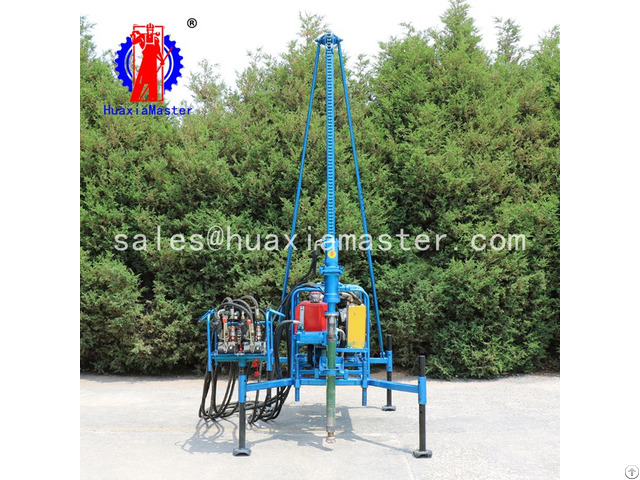

SDZ-30S pneumatic mountain drilling rig is developed by Shandong Master Machinery Group Co., Ltd combined with our company’s years of geophysical exploration drilling rig experience and the integration of foreign excellent mountain rig.

SDZ-30 pneumatic mountain drilling rig is a upgraded version mountain drilling rig.

The rig has a optimization design and is a cost-effective product with great value.

The SDZ-30S pneumatic mountain drilling rig can meet the construction requirements of air shock drilling and so on; so it can adapt to different geological environments.

The SDZ-30S pneumatic mountain drilling rig geophysical drilling rig is now widely used in the mountainous, jungle, hills, gobi, loess plateeu, seasonal farmland and other complex areas without water source, such as oil and gas seismic exploration, field investigation, geological structure investigation and other drilling engineering construction work.

2 - Features of SDZ-30S pneumatic mountain geophysical drilling rig

·Light weight modular design is adopted for quick disassemble and assemble for easy handling.

·The drilling rig and drill frame are strengthened and reinforced, which are more earthquake resistant and longer lasting.

·The front end of the base is designed with two sets of screw support, and the drill rig is more stable when drilling.

·Adopt a new and optimized hydraulic system, with higher efficiency and better control.

·The hydraulic oil tank is made by sheet metal process to reduce weld seam and use oil leakage for a long time.

·Lengthening the tubing between the hydraulic pump station and the operation table can achieve 3 meters outside operation.

·The screw type air compressor has the advantages of low energy consumption, low noise, high quality, stable exhaust pressure and low failure rate.

3 - Technical parameters of SDZ-30S pneumatic mountain geophysical drilling rig

SDZ-30S pneumatic mountain geophysical drilling rig specifications Capability Drilling mode air shock drilling Borehole diameter mm 76 Drilling depth m 30 Drilling pipe diameter mm 60*1500 Stroke mm 1850
