Water Well Road Drilling Machine Hz 200yy Hydraulic Portable Drill Rig - China

price: 100.00 Dollar US$

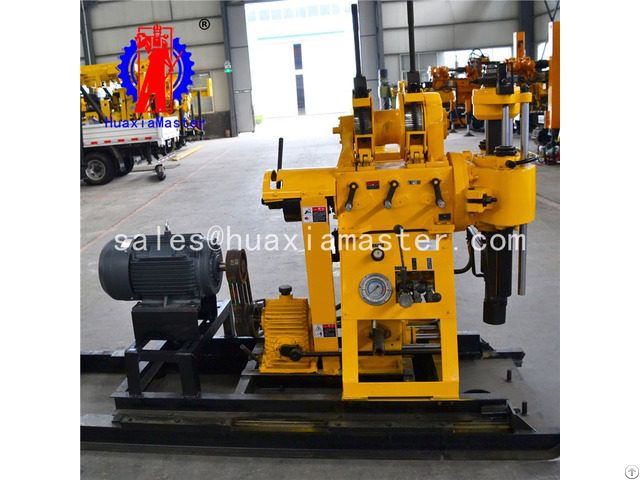

Water Well Road Drilling Machine Hz 200yy Hydraulic Portable Drill Rig

Products Photos Catalog Water Road Drilling Photos Catalog

1 - Applications of HZ-200YY hydraulic core drilling rig

HZ-200YY hydraulic core drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees, civil water wells and ground temperature central air-conditioner.

2 - Features of HZ-200YY hydraulic core drilling rig

·the highest speed can reach 1045r/min with 5 gears, which improves drilling efficiency

·adopted 53*59 drilling rod, which has high rigidity and strong delivery torque.

·equipped with taper clutch, made the machine easy to operate and free of maintenance.

·using large module planetary gear and adding supporting frame, which highly increased hoisting and braking ability of the winch.

·vertical spindle are fixed by four groups of bearings to ensure that the core drilling rig is rigid enough for gravel layer and other complex geological conditions.

3 - Technical parameters of HZ-200YY hydraulic core drilling rig

Max open hole diameter 300mm

End hole diameter 75mm

Drill rod diameter 60mm

Drilling angle 90

Drill weight (without power) 975kg

Triangle conveyer belt B950 * 4; B1700 * 3

Main drilling rig moving distance 300mm

Power Diesel engine 22HP Electric motor 15KW


Company Contact:


  • Phone: 8619806265526

  • Address: Wu taizha road, guanhe street,, Jining , Shandong , China

  • Email: Email


Published date: July 11, 2019

  • Business Description: Group for a long time in line with the giants of masters of "the spirit of craftsman, creates quality" concept of enterprise development, challenge pragmatic development, now has developed into a collection of research and development design, manufacture and market sales in the integration of many company joint operation of collectivization, giant group members have jining machinery research institute, shandong machinery manufacturing co., LTD., the giants of the giants and huge machinery co., LTD., shandong province, China, etc.
