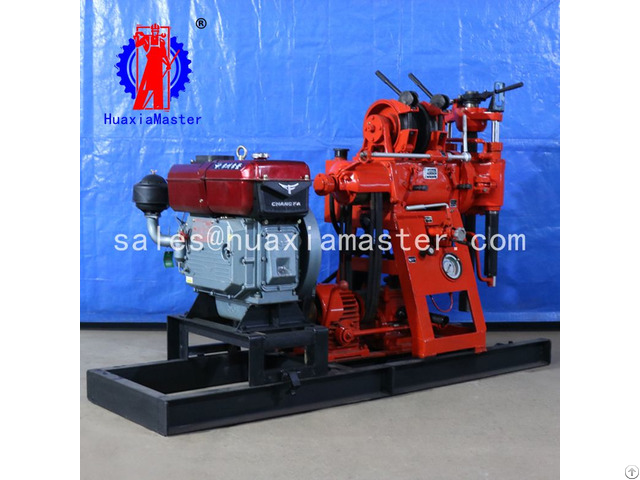

Xy 100 Hydraulic Core Drilling Rig Manufacturer For China - China

1 - Applications of XY-100 hydraulic drilling rig

XY-100 core drilling rig is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.

2 - Specifications of XY-100 hydralic drilling rig

Drilling depth 110

Maximum open hole caliber 220mm

End hole caliber 75mm

Drill rod caliber 50mm /42mm

Drilling angle 90

Drilling rig weight (Exclude diesel engine) 610kg

Unity machine dimensions 2.1*0.9*1.3m

Spindle

Spindle speed 130/300/480/730/830/1045 r/min

Spindle stroke 450mm

Mud pump

Type Horizontal single-urn twin-action

Displacement (with diesel engine/electric motor) 170l/min

Max.

pressure 1.5mpa

Work pressure 0.7mpa

Hoist

Max.

lifting capacity with single rope 1600kg

Lifting speed with single rope 1.06/0.67/0.32 m/s

Wire rope caliber 13mm

Wire rope cubic measure 35mm

Hug floodgate caliber 254mm

Hug floodgate belt width 50mm

Distance between drill and hole 230mm

Power

Diesel engine S1100

Electric motor Y160M-4 / 10KW
