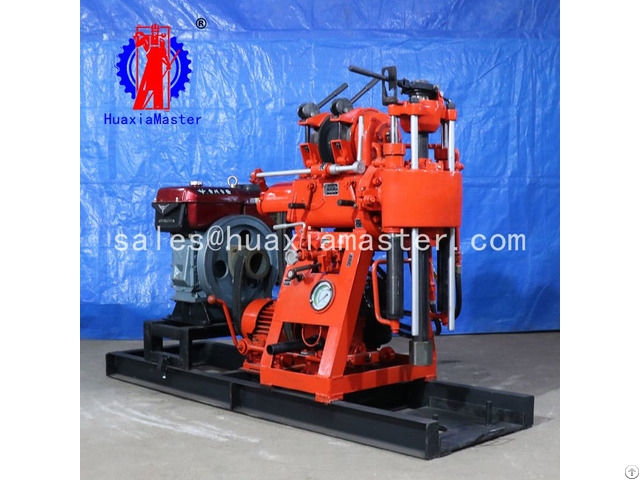

Xy 100 Hydraulic Core Drilling Rig Price - China

1 - Applications of XY-100 hydraulic drilling rig

XY-100 core drilling rig is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.

2 - Specifications of XY-100 hydralic drilling rig

Drilling depth 110M

End hole caliber 75mm

Maximum open hole caliber 220mm

Drill rod caliber 50mm /42mm

Drilling angle 90

Unity machine dimensions 2.1*0.9*1.3m

Drilling rig weight (Exclude diesel engine) 610kg

Hoist

Max.

lifting capacity with single rope 1600kg

Lifting speed with single rope 1.06/0.67/0.32 m/s

Wire rope caliber 13mm

Wire rope cubic measure 35mm

Hug floodgate caliber 254mm

Hug floodgate belt width 50mm

Distance between drill and hole 230mm

Spindle

Spindle speed 130/300/480/730/830/1045 r/min

Spindle stroke 450mm

Mud pump

Type Horizontal single-urn twin-action

Displacement (with diesel engine/electric motor) 170l/min

Max.

pressure 1.5mpa

Work pressure 0.7mpa

Power

Diesel engine S1100

Electric motor Y160M-4 / 10KW
