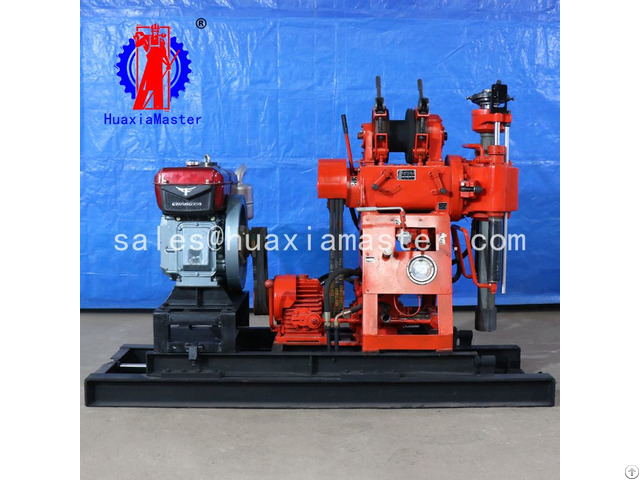

Xy 130 Hydraulic Core Drilling Rig 18hp Diesel Engine Convenient Operation - China

1 - Features of XY-130 hydraulic core drilling rig

·Hoist installation holder, forming structure of double support wheel, can withstand strong impact.

·Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission

·This drilling rig adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.

·Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.

2 - Specifications of XY-130 hydraulic core drilling rig

XY-130 hydraulic core drilling rig

Drilling depth 130m

Maximum open hole caliber 220mm

End hole caliber 75mm

Drill rod caliber 50mm

Drilling angle 90

Drill weight (Not include power) 600kg

Spindle

Spindle speed 142 285 570r/min

Spindle stroke 450mm

Hoist

Max.

single line hoisting capacity 1600kg

Single line lifting speed 0.41/0.82/1.64m/s

Drum diameter 140mm

Wire rope diameter 13mm

Tightrope caliber 27m

Mud pump

Type Horizontal single urn twin-action

Electric motor 95/77 l/min

Maximum pressure 1.2mpa

Work pressure 0.7mpa

Water inlet caliber 30mm

Water to exit caliber 20mm

Triangle conveyer belt B1575mm

Matched driving power (diesel engine and motor) 18hp diesel engine and 11kw motor
