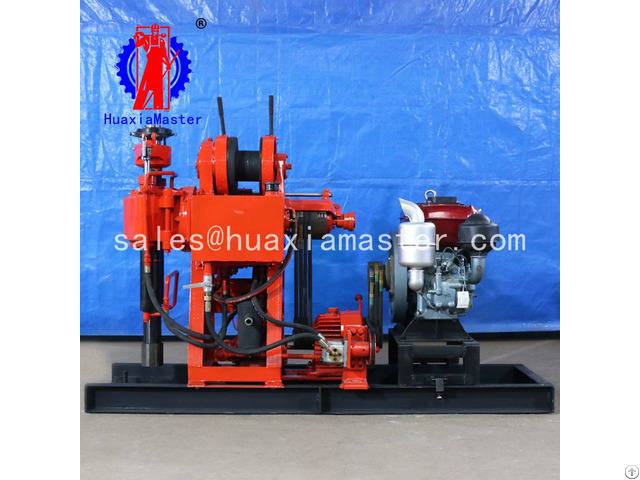

Xy 150 Hydraulic Core Drilling Rig For Hard Rock - China

1 - Applications of XY-150 core drilling rig

geological survey

geophysical exploration

water wells

blasting holes and other drilling projects

road and high-rise building foundation exploration

2 - Parameters of XY-150 core drilling rig

Drilling depth(m) 150

Maximum opening diameter(mm) 219

The final hole diameter(mm) 73

Rod diameter(mm) 42/50

Spindle speed (r/min) 140/295/470/790/1010

Spindle stroke(mm) 450

Hoisting capacity (kn) 14

Steel wire diameter(mm) 9.3

Working pressure (mpa) 0.7

Maximum pressure (mpa) 1.2

displacement(l/min) 150

Hydraulic pump pressure (mpa) 1.2

Hydraulic pump rotation speed (r/min) 1800

Matched driving power (diesel engine and motor) S1105 diesel engine and 11kw motor
