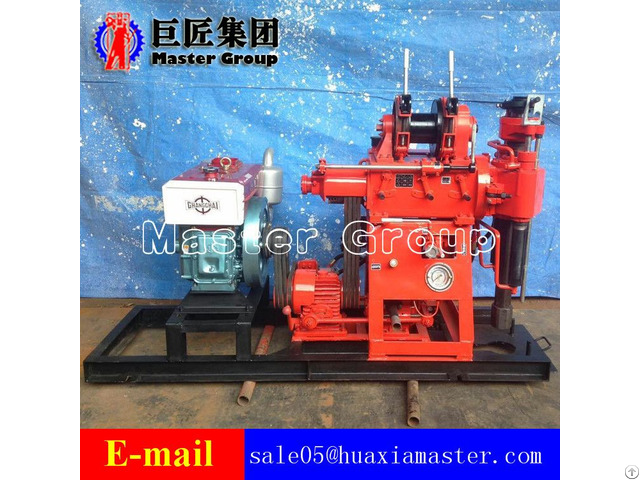

Xy 150 Water Well Drilling Rig - China

price: 5200.00 Dollar US$

1 - The applications of XY-150 drilling machine

Water well, field irrigation well, engineering water well, precipitation

well and so on; geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2 - The specifications of XY-150 drilling machine

Drilling depth(m) 150

Maximum opening diameter(mm) 219

End hole diameter(mm) 73

Drilling pipe diameter(mm) 42/50

Spindle rotating speed (r/min) 140/295/470/790/1010

Spindle stroke(mm) 450

Winch lifting force (single rope) 14

wire-rope diameter(mm) 9.3

Maximum pressure (mpa) 1.2

Working pressure (mpa) 0.7

Displacement(l/min) 150

Hydraulic pump pressure (mpa) 1.2

Hydraulic pump rotation speed (r/min) 1800

Matched power (diesel engine and motor) S1105 diesel engine and 11kw motor


Company Contact:


  • Phone: 18865479508

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, JINING , China , China

  • Email: Email


Published date: October 23, 2018

  • Business Description: Master Group Co., Ltd. is dedicated to providing the drilling rig and pile driver for engineering and mining construction.

    As a active response to the Belt and Road Initiative, We have took numerous efforts to go abroad.

    Our products have been sold to Europe, CentralAsia, Southeast Asia, Africa and dozens of countries and regions.

    We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements.

    We are a leading company in the drill rig industry in China.

    We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes.

    And we have participated in a number of national key projects and earned our reputation.

    Our Companys “HuaxiaMaster” has become a well-known brand in China.

    Our Products:

    - 4kw Collapsible Electric Water Well Drilling Rig

    - China Portable Automatic Water Well Drilling Rig

    - China Hz 130y Hydraulic Water Well Drilling Rig

    - China Hz 130yy Water Well Drilling Machine

    - Xyx 130 Water Well Hydraulic Press Drilling Machine
