Xy 180 Hydraulic Core Drilling Machine Manufacturer For China - China

1 - Applications of XY-180 hydraulic core drilling rig

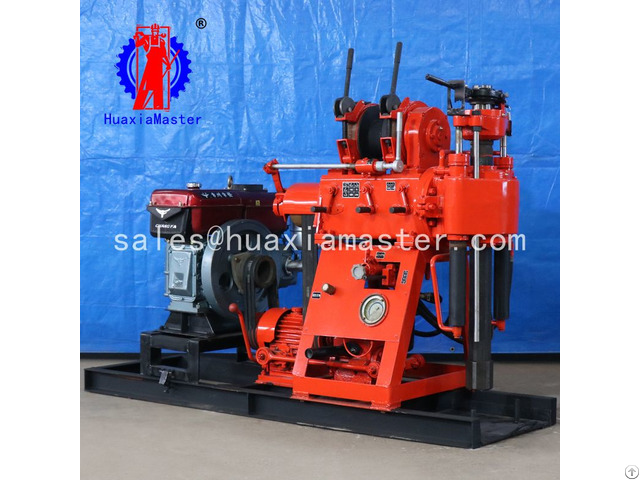

The XY-180 hydraulic core drilling rig is designed on the basis of the XY-1A hydraulic core drilling rig.

It is a low speed and high torque portable drilling machine with oil pressure.

This drill rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.

3 - Parameters of XY-180 hydraulic core drilling rig

Borehole diameter(mm) 75/91/110/130/150/300

Drilling depth(m) 180/150/120/90/70/30

Maximum opening diameter(mm) 375

Drill pipe diameter(mm) 42/50

Spindle speed (r/min) 71/142/310/620

Spindle stroke(mm) 450 Upgrading ability (KN) 15

Diameter of steel wire(mm) 12

Type gear pump

Model YBC-12/80

Rated pressure (MPa) 8

Rated speed (r/m) 1500

Displacement(ml/r) 8

Power supply ZS1115 diesel engine and 15kw motor Shandong Master Machinery Group Co., Ltd.
