Xy 180 Water Borehole Drilling Machine - China

price: 5600.00 Dollar US$

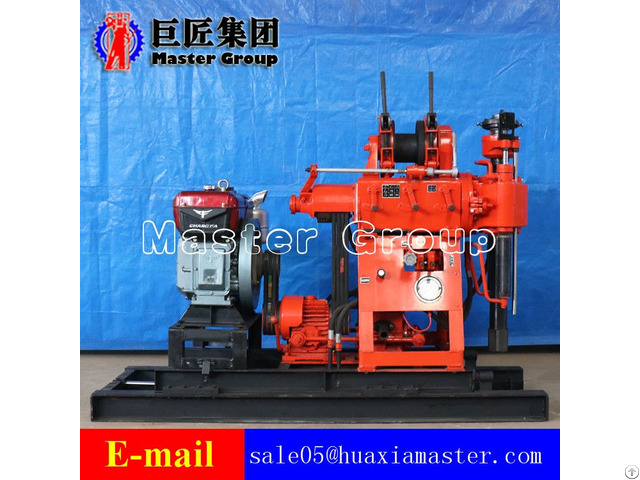

Xy 180 Water Borehole Drilling Machine

Products Photos Catalog 180 Water Borehole Photos Catalog

1 - The features of XY-180 water well drilling rig

The XY-180 drill is designed on the basis of the XY-150 drill.

It is a low speed and high torque portable drilling machine with oil pressure.

This drill is suitable for engineering geological survey of railway, hydraulic power, traffic, bridge, dam foundation and other buildings.

Geological core drilling and physical investigation.

Drilling of small grouting holes and blasting holes.

A small water well drilled.

2 - The specifications of XY-180 drilling rig Drilling depth(m) 180/150/120/90/70/30

Borehole diameter(mm) 75/91/110/130/150/300

Maximum opening hole diameter(mm) 375

Drilling pipe diameter(mm) 42/50

Spindle rotation speed (r/min) 71/142/310/620

Spindle stroke(mm) 450

Winch lifting force (kn) 15

Wire-rope diameter(mm) 12

Pump type Gear pump

Model YBC-12/80

Rated pressure (mpa) 8

Rated rotation speed (r/m) 1500

Displacement(ml/r) 8

Matched power ZS1115 diesel engine and 15kw motor


Company Contact:


  • Phone: 18865479508

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, JINING , China , China

  • Email: Email


Published date: October 23, 2018

  • Business Description: Master Group Co., Ltd. is dedicated to providing the drilling rig and pile driver for engineering and mining construction.

    As a active response to the Belt and Road Initiative, We have took numerous efforts to go abroad.

    Our products have been sold to Europe, CentralAsia, Southeast Asia, Africa and dozens of countries and regions.

    We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements.

    We are a leading company in the drill rig industry in China.

    We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes.

    And we have participated in a number of national key projects and earned our reputation.

    Our Companys “HuaxiaMaster” has become a well-known brand in China.
