Xy 200 Hydraulic Core Drilling Rig Price For China - China

price: 17800.00 Dollar US$

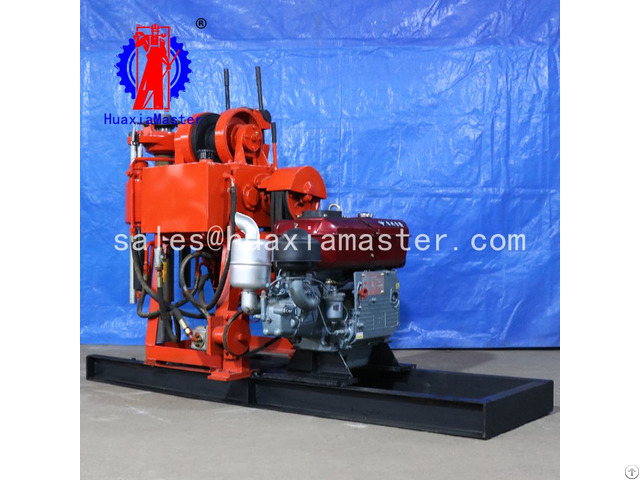

Xy 200 Hydraulic Core Drilling Rig Price For China

Products Photos Catalog 200 Hydraulic Core Photos Catalog

1 - Applications of XY-200 core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2 - Parameters of XY-200 core drilling machine

Maximum opening diameter 400mm

Maximum borehole depth 200m

Diameter of the end hole 75mm

Borehole dip angle 90-75°

Machine overall size 2.75*0.95*1.60m

Drill pipe diameter 50mm

Weight of drill rig diameter of drill pipe (without power) 760kg

A vertical scroll of painting

Shaft rotation speed 71/142/310/20r/min

Vertical axis stroke 450mm

Mud pump

Type: horizontal single cylinder double action flow：180L/min

Maximum pressure 1.5mpa

Working pressure 0.7mpa

Inlet size 50mm

Outlet pipe diameter 45mm

Power

Electric machinery 15kw

Rated speed 1460r/min

Diesel oil 22hp

Rated speed 2200r/min

Windlass

Maximum lifting weight of single rope 2008kb

Drum lifting speed 17/35/75/160 rm/s

Wire rope diameter: 13mm

Wire rope capacity 35mm

Width of sluice 70mm


Company Contact:


  • Phone: 18865479502

  • Address: No.47,Jinyu Road,Jining City,Shandong Province,China, jining , China , China

  • Email: Email


Published date: January 18, 2019

  • Business Description: Shandong Master Machinery Group Co., Ltd. is located in Jining city, Shandong Province , which is known as "The hometown of Confucius, formal state" reputation .

    Company east to “ Oriental holy city”of qufu, west to “hero”of liangshan, “qilu graceful” weishan lake in the south, "wuyue exclusive" Tarzan in the north, The martial arts are prosperous, and the people are geeky.

    convenient transportation like Jining airport, beijing-shanghai high-speed railway, lunan high-speed railway, beijing-taiwan expressway, zhanlan high-speed crisscross, , communication developed.

    Shandong Master Machinery Group Co., Ltd. as parent company and head office hold the spirit of "delivering the spirit of craftsman and the quality of the great craftsman" for a long time , Pragmatic development will strengthen our progress.

    Nowadays, it has developed into a collectivized enterprise integrating r&d design, production processing and marketing.

    The group company mainly provides solutions for engineering and mine construction.

    With high quality products, good service and honest reputation, our company has established a solid material supply relationship with several universities, research institutes, design institutes and reconnaissance institutes.

    And stand out from a large number of national key project construction projects , The market performance is among the best in the industry.

    The group company actively responds to the national "One Belt And One Road" policy to go abroad.

    Drilling rig products are now sold to many countries in Europe, central Asia, southeast Asia and Africa.

    Our company's independent brand "HuaxiaMaster" has become a well-known brand for customers.

    It is a pleasure to have friends coming from afar.

    We warmly welcome friends from all walks of life to visit our company and work together to create a better tomorrow.
