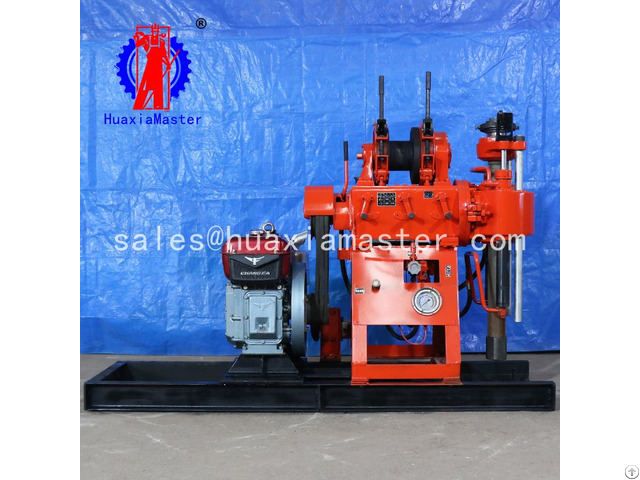

Xy 200 Hydraulic Water Well Drilling Rig Price - China

1 - The applications of XY-200 drilling machine

Water well, field irrigation well, engineering water well, precipitation well and so on; geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2 - The Specifications of XY-200 drilling machine

Drilling depth 200m

Maximum opening hole diameter 400mm

End hole diameter 75mm

Drilling angel 90-75°

Drilling pipe diameter 50mm

Dimension 2.75X0.95X1.60m

Weight without power 760kg

Spindle

Spindle rotation speed 71/142/310/20r/min

Spindle stroke 450mm

Winch

Maximum lifting weight (single rope) 2008kb

Lifting speed 17/35/75/160rm/s

Wire-rope diameter: 13mm

Roll capacity 35mm

Mud pump

Type: horizontal single cylinder double action flow：180L/min

Inlet pipe diameter 50mm

Outlet pipe diameter 45mm

Maximum pressure 1.5mpa

Working pressure 0.7mpa

Power

Diesel 20hp

Rated speed 2200r/min

Electric motor 15kw

Rated speed 1460r/min
