Xy 3 Hydraulic Core Drilling Rig - China

price: 11500.00 Dollar US$

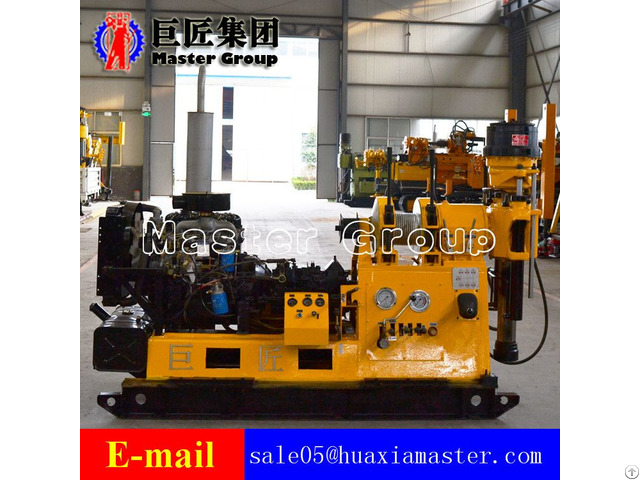

Xy 3 Hydraulic Core Drilling Rig

Products Photos Catalog Hydraulic Core Photos Catalog

1 - Features of XY-3 core drilling rig

XY-3 drilling machine adopts CG140 model auto transmission, has 10 rotation speeds and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application

Large torque, strong bearing capacity, can realize long distance control speed change, operation centralized and convenient

Large engine power and two reverse rotation gears, can easily solve the water well drilling work accident.

Equipped with normally closed hydraulic chuck, operation is flexible and reliable

The independent operation of the vertical shaft and the hoist can be realized

The diameter of the vertical shaft through the hole is large and can be replaced with a large six party active drill rod

2 - Parameters of XY-3 core drilling rig

XY-3 core drilling rig

Water well Drilling depth 600m

Borehole diameter 300-75mm

Max open hole caliber 300mm

End hole caliber 75mm

Drilling Rod diameter 60

Drilling angle 90°-65°

Spindle

spindle speed 30-1050r/min

Spindle stroke 29-137r/min

Spindle stroke 60mm

Spindle inner diameter 96mm

Lifting capacity 6000kg

Hoist

Max.

Single line lifting speed 0.5-1.9m/s

Wire rope caliber 12.5mm

Max.

Single line lifting capacity 4000kg

Reel diameter 300mm

Wire rope length 50m

Maximum lifting capacity of single rope 3000kg

Mud pump

Type Horizontal three cylinder BW-250

Displacement 250l/min

Work pressure 80kg/cm²

Water inlet pipe diameter 75mm

Water outlet pipe diameter 50mm

Gear Oil pump

Duplex gear oil pump CBF-F63/25

Front Displacement, pressure 63l/min 20mpa

Water outlet pipe diameter 25l/min 20mpa

Power

Diesel engine 39kw

Electric machinery 22kw

Weight size

Drill weight 1800kg

Shape size 2500*900*1800mm
