Xy 44a Hydraulic Motor For Drilling Rig Price - China

1 - Characteristics of XY-44A hydraulic drilling rig

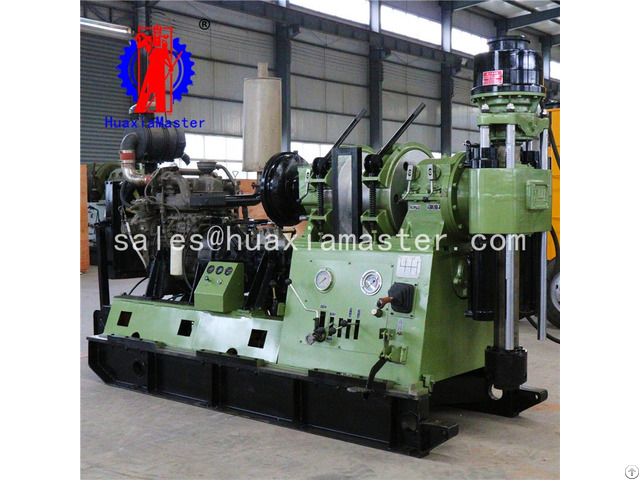

XY-44A exploration drilling rig is a multi-purpose spindle diamond core drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation.

Huaxia Master core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.

2 - Applications of XY-44A hydraulic drilling rig

hydrology and water well drilling large diameter foundation piles construction

core drilling, engineering geology exploration, 3 - Parameters of XY-44A hydraulic drilling rig

XY-44A hydraulic drilling rig

Drilling depth 600-1400m

Max open hole caliber 300mm

End hole caliber 75mm

Drilling Rod diameter 60mm

Drilling angle 90-65

Drill rig moving stroke 450mm

Spindle

Spindle speed ( Diesel Engine) Forward 60 97 169 187 276 301

284 487 521 847 1180 1490r/min

Reverse 65 201r/min

Spindle speed ( Electric Motor) Forward 50 81 141 155 230 251

320 406 434 706 984 1247r/min

Reverse 54 167r/min

Spindle stroke 600mm

Spindle inner diameter 96mm

Spindle max.

pressure force 90kn

Lifting capacity 120kn

Main hoist

Max.

single line lifting capacity 45kn

Max.

single line lifting speed 0-45m/s

Wire rope caliber 17.5-18.5mm

Hoist capacity of wire line 90-110m

Roller diameter 140mm

Wirerope diameter 6mm

Wire rope length 450m

Mud pump

Type BW-250

Displacement 250 l/min

Work pressure 80kg/cm²

Water inlet pipe diameter 75 mm

Water outlet pipe diameter 50 mm

Power

Diesel engine YC4E135-1 100KW

Electric motor Y225S-4 37KW
