Xy 44a Water Well Drilling Rig Price - China

1 - The brief introductions of XY-44A water well drilling rig

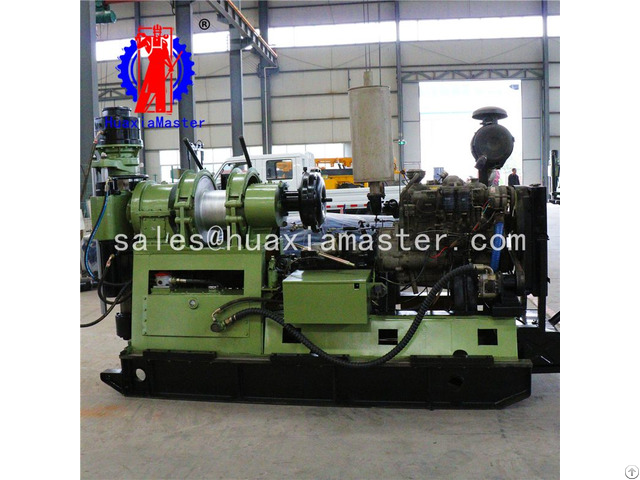

XY-44A water well drilling rig is a multi-purpose spindle diamond drilling rig.

its suitable for high-speed medium and deep borehole drilling in complex rock formation.

Core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.

2 - Applications of XY-44 water well drilling rig

Made in China water well, field irrigation well, engineering water well, precipitation well and so on; core drilling, engineering geology exploration, hydrology as well as large diameter foundation piles construction.

3 - The specifications of XY-44A water well drilling machine XY-44A water well drilling rig

Drilling depth 600-1400m

Max open hole diameter 300mm

End hole diameter 75mm

Drilling pipe diameter 60mm

Drill rig moving stroke 450mm

Drilling angle 90°-65°

Spindle

Rotating speed ( electric motor) forward 50/81/141/155/230/251/320 /406/434/706/984/1247r/mi n

reverse 54 167r/min

Rotating speed ( diesel engine) forward 60/97/169/187/276/301/284 /487/521/847/1180/ 1490r/min

reverse 65 201r/min

Stroke 600mm

Maximum pressure 90kn

Spindle inner diameter 96mm

Lifting power 120kn

Windlass

Maximum.

lifting power of a single rope 45kn

Maximum lifting speed of a single rope 0-45m/s

Wire rope diameter 17.5-18.5mm

Windlass capacity In terms of wire rope length 90-110m

Drum diameter 140mm

Wire rope diameter 6mm

Wire rope length 450m

Mud pump

Type BW-250

Displacement 250 l/min

Work pressure 80kg/cm²

Water inlet pipe diameter 75 mm

Water outlet pipe diameter 50 mm

Power

Diesel engine YC4E135-1 100KW

Electric engine Y225S-4 37KW
