Xy 8 Hydraulic Water Well Drilling Rig - China
price: 40000.00 Dollar US$

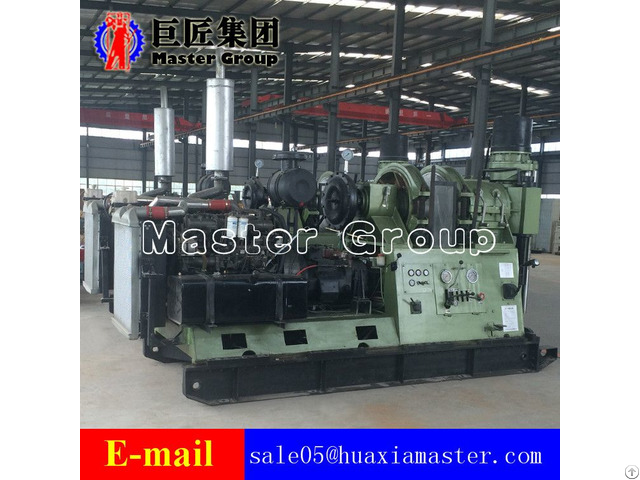

1 - The features of XY-8 water well drilling rig
Machine adopts pneumatic shift Fast gear 8JS118 auto transmission
and clutch, compact structure, smooth operation, stable performance, good
wild card.
Using auto-control flexible-shaft shift agency, we achieve the long-distance transmission shift.
The pneumatic shift is light and agile, and has the advantage of hommization.
Reasonable speed range and many speed radixes (8 forward speed, 1 reverse speed), with low-speed it has big torque (Max.
up to 8000N.
m).
Using concentrated forced lubrication system, as long as the rig runs, the separate lubrication oil pump starts working and sends lubrication oil to each node that requires lubrication.
When the oil lubricates drive mechanism, it will also take away the heat inside, (lubrication system with separate condenser), to prevent the components from heat caused by high-speed high-load state.
The rig adopts involute splined vertical shaft instead of the traditional hexagonal vertical shaft, exponentially increasing gyrator transmission efficiency and carrying capacity .
And new spindle shaft has big hole diameter (96 mm), with twin cylinder hydraulic feed the trip is much longer (up to 1000mm), especially suitable for large diameter.
drill pipe wireline coring, help to improve drilling efficiency and reduce the hole accident.
Light weight and can be disassembled to many parts, net weight 6500Kg.
The chuck is hydraulic-release normally closed hydraulic chuck, new structure, good compensatory.
Carbide inset&welded slip structure, has large clamping force, long life, reliable operation.
With water brake, in deep hole drilling, it’s safer and more smooth to put down the drill pipe.
Hydraulic oil is supplied by gear oil pump, less power consumption, and the hydraulic system oil temperature is low and stable work.
The system is equipped with a hand pump.
When power machine can not work, workers can still use hand pump to lift tools from the bottom of the hole, in order to avoid burying accidents.
Advanced and compact structure, reasonable layout, all components are revealed outside, do not overlap, ease of maintenance, maintenance and repair.
The rig has a low center of gravity and long backward stroke (up to 530mm).
Easy to be fixed on tower base, the rig has good stability in high-speed drilling.
With shockproof meter, it’s easy to observe hole situation.
Control-handles are in reasonable layout, operation is flexible and reliable.
2 - The specifications of XY-8 well drilling machine
Drilling Pipe Type Parameters Drilling Depth
Drilling pipe 50X4.75 2200m 50X5 2000m 60X6 1450m 71X5 1650m 73X7 1000m 89X5 1300m 89X10 600m
DCDMA
(diamond core
drill association)
drilling pipe Internal upset drill pipe BW Drill Rod 2200m NWD rill Rod 1700m HWD rill Rod 1150m Wire-line coring drill pipe BQ Drill Rod 2200m NQ Drill Rod 1700m HQ Drill Rod 1150m PQ Drill Rod 800m BCQ Drill Rod 2500m NCQ Drill Rod 2000m HCQ Drill Rod 1550m Drilling angel 75-90°
Electric motor Y280S-4 /75KW
Diesel engine YC6A240-33/ 177KW
Gyrator 96mm
Forward speed 74/106/150/208/300/431
Inversion speed 110rpm
Power diesel engine
Forward speed 110/157/222/309/445/640/9 05/1256
Inversion speed 74rpm
Max.
torque of spindle 8000nm
Spindle stroke 800mm
Max.
lifting force of spindle 180kn
Max.
thrust of spindle 110kn
Type Planetary gear drive, hand brake
Wire rope diameter 21.5mm(6X19)
Drum capacity for rope 120m
Max.
lifting force(single rope) 60kn
Lifting speed of the wire rope Power unit rotary speed 1480rpm(m/s) 0.48/0.68/0.96/1.34/1.96/ 2.81/3.96/5.51
Power unit rotary speed 2300rpm(m/s) 0.71/1.01/1.42/1.99/2.91/ 4.17/5.88/8.19
Transmission Shanxi Fast Gear 8JS118 transmission and ancillary clutch, safe and reliable.
Oil pump type/ model gear oil pump/ CB-32
Rotary speed 2500r/min
Displacement 32 ml/r
Work pressure 20mpa
Max.
pressure 25mpa
Direction of rotation Right(see from shaft end)
Work rotary speed 700-1800r/min
Single rope compensational speed 3-8m/s
Single rope compensational load 45kn
Form skids type(with sliding base)
Rig backward stroke 530mm
Dimensions(L*W*H) 3800*1500*2460mm
Rig weight 6500kg
