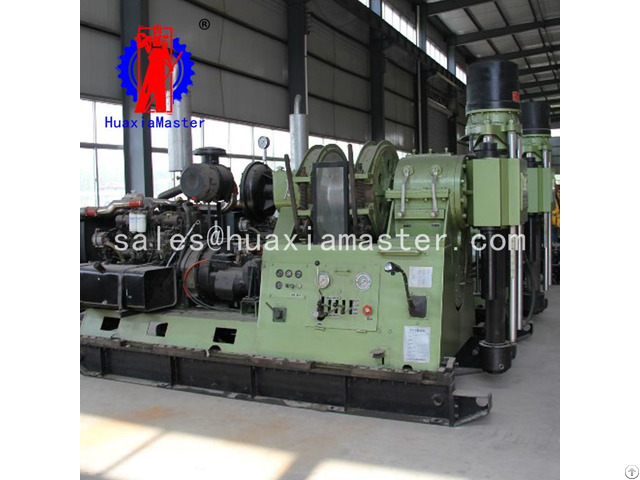

1 - The features of XY-8 water well drilling rig

Machine adopts pneumatic shift Fast gear 8JS118 auto transmission

and clutch, compact structure, smooth operation, stable performance, good

Reasonable speed range and many speed radixes (8 forward speed, 1 reverse speed), with low-speed it has big torque (Max.

up to 8000N.

m).

 wild card.

Using auto-control flexible-shaft shift agency, we achieve the distance transmission shift.

The pneumatic shift is light and agile, and has the advantage of hommization.

Using concentrated forced lubrication system, as long as the rig runs, the separate lubrication oil pump starts working and sends lubrication oil to each node that requires lubrication.

When the oil lubricates drive mechanism, it will also take away the heat inside, (lubrication system with separate condenser), to prevent the components from heat caused by high-speed high-load state.

The rig adopts involute splined vertical shaft instead of the traditional hexagonal vertical shaft, exponentially increasing gyrator transmission efficiency and carrying capacity .

And new spindle shaft has big hole diameter (96 mm), with twin cylinder hydraulic feed the trip is much longer (up to 1000mm), especially suitable for large diameter.

drill pipe wireline coring, help to improve drilling efficiency and reduce the hole accident.

Light weight and can be disassembled to many parts, net weight 6500Kg.

The chuck is hydraulic-release normally closed hydraulic chuck, new structure, good compensatory.

Carbide inset&welded slip structure, has large clamping force, long life, reliable operation.

With water brake, in deep hole drilling, it’s safer and more smooth to put down the drill pipe.

Hydraulic oil is supplied by gear oil pump, less power consumption, and the hydraulic system oil temperature is low and stable work.

The system is equipped with a hand pump.

When power machine can not work, workers can still use hand pump to lift tools from the bottom of the hole, in order to avoid burying accidents.

Advanced and compact structure, reasonable layout, all components are revealed outside, do not overlap, ease of maintenance, maintenance and repair.

The rig has a low center of gravity and long backward stroke (up to 530mm).

Easy to be fixed on tower base, the rig has good stability in high-speed drilling.

With shockproof meter, it’s easy to observe hole situation.

Control-handles are in reasonable layout, operation is flexible and reliable.

2 - The specifications of XY-8 well drilling machine

Drilling Pipe Type Parameters Drilling Depth

Drilling pipe 50X4.75 2200m 50X5 2000m 60X6 1450m 71X5 1650m 73X7 1000m 89X5 1300m 89X10 600m

DCDMA

(diamond core

drill association)

drilling pipe Internal upset drill pipe BW Drill Rod 2200m NWD rill Rod 1700m HWD rill Rod 1150m Wire-line coring drill pipe BQ Drill Rod 2200m NQ Drill Rod 1700m HQ Drill Rod 1150m PQ Drill Rod 800m BCQ Drill Rod 2500m NCQ Drill Rod 2000m HCQ Drill Rod 1550m Drilling angel 75-90°

Electric motor Y280S-4 /75KW

Diesel engine YC6A240-33/ 177KW

Gyrator 96mm

Forward speed 74/106/150/208/300/431


Inversion speed 110rpm

Power diesel engine

Forward speed 110/157/222/309/445/640/9 05/1256

Inversion speed 74rpm

Max.

torque of spindle 8000nm

Spindle stroke 800mm

Max.

lifting force of spindle 180kn

Max.

thrust of spindle 110kn

Type Planetary gear drive, hand brake

Wire rope diameter 21.5mm(6X19)

Drum capacity for rope 120m

Max.

lifting force(single rope) 60kn

Lifting speed of the wire rope Power unit rotary speed 1480rpm(m/s) 0.48/0.68/0.96/1.34/1.96/ 2.81/3.96/5.51

Power unit rotary speed 2300rpm(m/s) 0.71/1.01/1.42/1.99/2.91/ 4.17/5.88/8.19

Transmission Shanxi Fast Gear 8JS118 transmission and ancillary clutch, safe and reliable.

Oil pump type/ model gear oil pump/ CB-32

Rotary speed 2500r/min

Displacement 32 ml/r

Work pressure 20mpa

Max.

pressure 25mpa

Direction of rotation Right(see from shaft end)

Work rotary speed 700-1800r/min

Single rope compensational speed 3-8m/s

Single rope compensational load 45kn

Form skids type(with sliding base)

Rig backward stroke 530mm

Dimensions(L*W*H) 3800*1500*2460mm

Rig weight 6500kg
