1 - The features of XYC-200 water well drilling rig

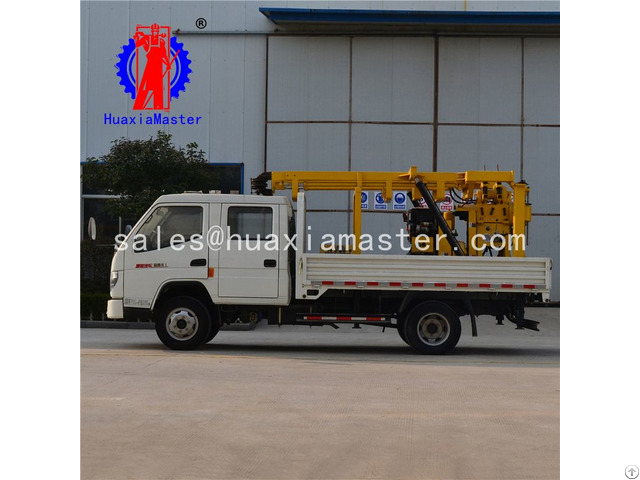

XYC-200 is a multi-function hydraulic vehicle mounted rotary spindel drilling rig.

It configures BW160 mud pump, high pressure and big flow, which can ensure drilling depth and diameter.

The Tang Jun goldlika automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis, the layout is reasonable and compact, it’s easy to operate.

The rig has shifting device, it can move on the vehicle, convenient to operate while drilling.

Hydraulic lifting and landing type automatic Telescopic drilling tower is safe and convenient to operate.

2 - The applications of XYC-200 vehicle drilling rig

Water well, field irrigation well, engineering water well, precipitation well and so on; geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting.

3 - The specifications of XYC-200 water well drilling rig XYC-200 vehicle drilling rig

Drilling depth(m) 30-200

Drilling hole diameter(mm) 300-75

Drilling angel(mm) 90-75

Spindle rotating speed(r/min) 64/128/287/557

Spindle stroke(mm) 450

Windlass lifting power (single line)(Kg) 1600

Windlass capacity In terms of rope length 35

Windlass lifting speed(r/s) 17/35/75/151

Wire-rope diameter(mm) 12.5

Drilling tower height(mm) 7000

Drilling tower effective height(mm) 6500

Active drilling Pipe 59*53

Drilling pipe (mm) 42/50/60

Drilling rig weight(kg) 1150

Engine model ZS1115 diesel

engine

rated power 14.7kw/2200rpm

BW-160 mud pump rated flow(l/min) 160

rated pressure(mpa) 1.3

driven power(kw) 5.15

main engine weight(kg) 190 External dimension(mm) 1110*725*965 Chassis model 95hp light truckdual row column plate light card

3.3 meterdual row column plate light card

driven-type 4*2 Engine

model quanchai 4B2-95C40 emission

standard GB3847-2005, GB17691-2005

rated power

(kw) 70

rotating speed

(r/min) 3200
