Xyc 200 Vehicle Mounted Hydraulic Rotary Drilling Rig Manufacture - China

1 - Characteristics of XYC-200 vehicle-mounted drilling rig

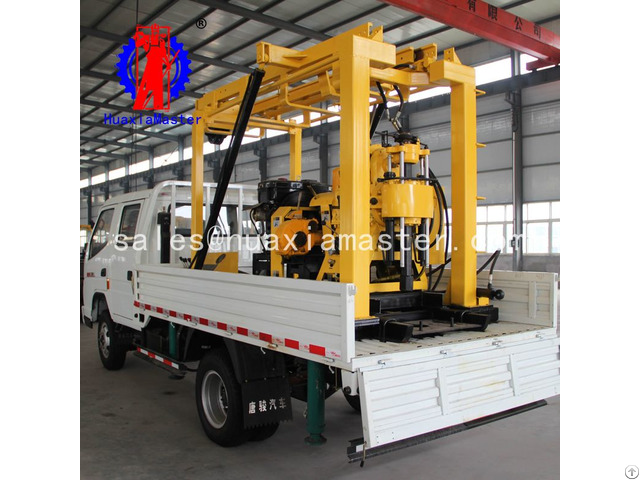

XYC-200 is a multi-function hydraulic vehicle-mounted rotary drilling rig.

the Tang Jun automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis.

the layout is reasonable, compact, and easy to operate.

It is equipped with high pressure, big flow BW160mudpump, which can ensure drilling depth and diameter.

the hydraulic folding mast is safe and convenient to transport

the rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.

2 - Applications of XYC-200 drilling rig

road and high-rise building foundation exploration

all kinds of concrete structure inspection holes

river embankments

subgrade grouting holes

drilling and direct grouting

civil water well ground temperature central air conditioners.

3 - Parameters of XYC-200 vehicular drilling rig

XYC-200 vehicular drilling rig

Drilling depth(m) 30-200

Drilling diameter(mm) 300-75

Drilling Angel(mm) 90-75

Spindle rotating speed(r/min) 64/128/287/557

Spindle stroke(mm) 450

Main hoisting capacity

(single line)(Kg) 1600

Main hoisting line capacity

(m) 35

Hoisting speed(r/s) 17/35/75/151

Wireline diameter(mm) 12.5

Mast height(mm) 7000

Mast effective height(mm) 6500

Kelly/active pipe(mm) 59*53

Drill rod(mm) 42/50/60

Drill rig weight(kg) 1150

Power Unit Model ZS1115 diesel engine Rated power 14.7kw/2200rpm BW-160 mud pump Rated flow(l/min) 160 Rated pressure(mpa) 1.3 Driving power(kw) 5.15 Main machine weight

(kg) 190 Dimension(mm) 1110*725*965 Chassis Model 95hp light truck

The 3.3 meter steeplechase double light card

Drive mode 4*2 Power unit Model Quanchai 4B2-95C40

Emission standard GB3847-2005, GB17691-2005Ⅳ

Rated power(kw) 70

Rotating speed(r/min) 3200
