Xyc 200a Tricycle Mounted Hydraulic Core Drilling Rig Machine Supplier - China

1 - Characteristics of XYC-200A tricycle-mounted hydraulic core drilling rig

·XYC-200A tricycle-mounted hydraulic core drilling rig is multi-function hydraulic vehicle-mounted core drilling machine .

·XYC-200A tricycle-mounted hydraulic core drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.

·The tricycle is Tricar.

The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.

·The tricycle drilling rig is equipped with shift unit, so the drilling rig can move back and forth

·The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency

·The drilling rig is Adopted 53*59 drilling rod, which has high rigidity and strong delivery torque

·Equipped with taper clutch, made the machine easy to operate and free of maintenance.

·Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.

·Vertical spindle are fixed by four groups of bearings to ensure that the core rig is rigid enough for gravel layer and other complex geological conditions.

2 - Parameters of XYC-200A tricycle-mounted hydraulic core drilling rig

Drilling depth 200m

Max.

open hole diameter 75-260mm

End hole diameter(mm) 75

Drill rod diameter 50mm

Drilling tower height 6500mm

Drilling angle 90-75

Spindle

Spindle speed 64/128/287/557r/min

Spindle stroke 450mm

Hoist

Max.

single line hoisting capacity 1600kg

Single line lifting speed 17/35/75/151r/min

Tightrope diameter 12.5mm

Tightrope cubic measure 35mm

Hug floodgate belt width 70mm

Mud Pump

Type Horizontal Single Urn Twin-action

Discharge displacement 170l/min.

Diesel S1115 22HP

Electric motor 15kw, 1440r/min

Max.

pressure 1.5mpa

Work pressure 0.7mpa

Water inlet diameter 30mm

Water outlet diameter 25mm

Triangle conveyre belt B1728mm

Chassis

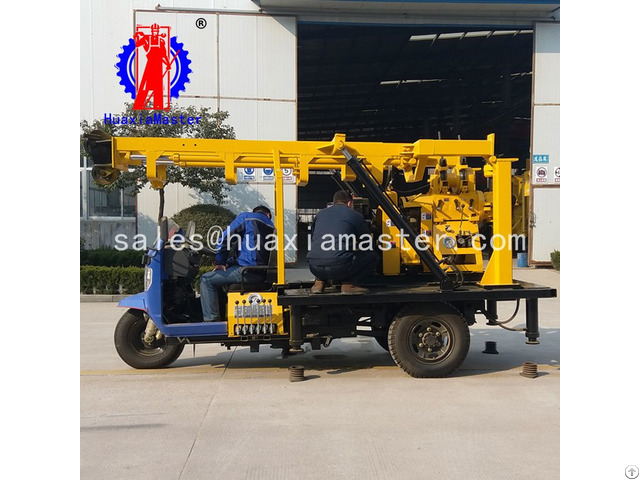

Chassis Tricar(Pictures of vehicle-mounted drilling rigs for reference only)
